Tough Dog Ford Ranger PX1 & PX2 (2011–2019) Complete 40mm Suspension Lift Kit

The Tough Dog Ford Ranger PX1/PX2 (2011–2019) 40mm Suspension Kit is the legendary solution for one of South Africa’s most popular bakkies. Designed to solve the factory “nose-dive” and soft rear leaf spring issues, this kit delivers a significant increase in load-carrying capacity and ground clearance — whether you’re a farmer, a weekend warrior, or a cross-border overlander pushing through the harshest conditions Southern Africa has to offer.

Featuring 41mm Bore Foam Cell Shock technology, this system uses a microcellular foam insert to prevent oil aeration — ensuring your suspension stays cool and consistent even after hours of corrugated gravel driving in the African heat.

---

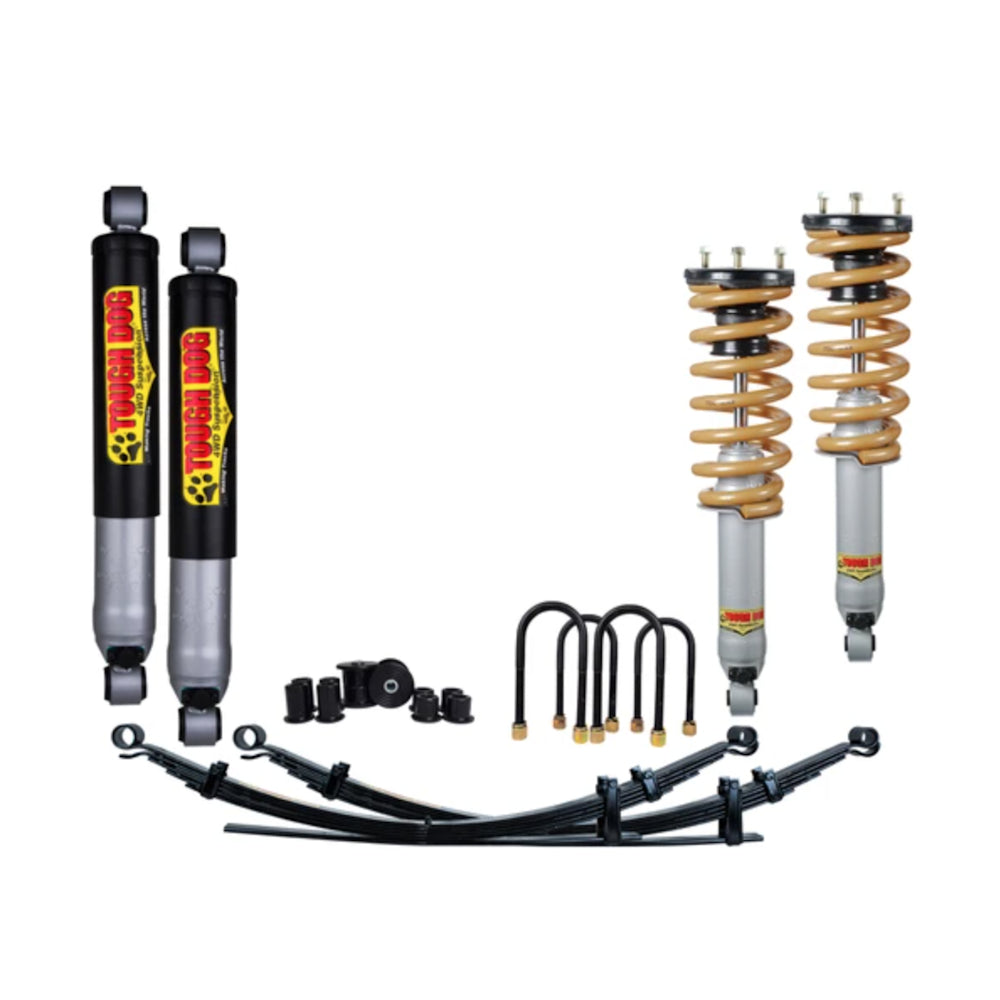

🔧 Kit Components & Technical Specs

• Lift Height: Approximately 40mm
• Front Shocks: 2x 41mm Bore Foam Cell Shock Absorbers (optional: 9-stage adjustable units)
• Rear Shocks: 2x 41mm Bore Foam Cell Shock Absorbers (optional: 9-stage adjustable units)
• Front Springs: High-tensile Coil Springs — available for No Bar, Steel Bullbar, or Winch setups
• Rear Springs: Multi-leaf Spring Packs — Comfort, 300kg Constant, or 500kg Constant Load options
• High-tensile Steel U-Bolts
• Polyurethane Shackle Bush Kit
• Centre Bearing Spacer Kit — highly recommended for the PX platform to eliminate post-lift driveline shudder
• Approx. Shipping Weight: 85kg – 100kg
• Package Dimensions (L×W×H): 1200mm × 500mm × 400mm
• SKU: TD-RANGER-PX-COMPLETE (configuration dependent)

---

🚗 Why Upgrade Your PX1/PX2 Ranger?

The PX1 and PX2 Rangers are famous for their 3.2L torque and legendary reliability — but the factory suspension often feels “mushy” once you add a steel bumper, canopy, or tow ball load. Tough Dog’s progressive leaf springs deliver a plush, comfortable ride when empty while maintaining exceptional stability and load control when fully laden — keeping your Ranger safe and level on any terrain.

• ✅ 40mm lift — corrected nose-down rake and improved ground clearance for trails and gravel roads
• ✅ Eliminates nose-dive — firmer front coil rates restore braking composure and driver confidence
• ✅ Progressive rear leaf springs — plush when empty, composed and stable when fully loaded
• ✅ Load-rated spring options — Comfort, 300kg, or 500kg Constant to match your canopy, bullbar, or towing setup
• ✅ Centre Bearing Spacer Kit included — eliminates post-lift driveline shudder on the PX platform
• ✅ Foam Cell shock technology — microcellular foam prevents oil aeration for fade-free performance in extreme heat
• ✅ Optional 9-stage adjustable shocks — fine-tune your ride for any terrain or load condition

Tip: Greasable Shackles and Pins are available as an optional upgrade for the PX Ranger — extending the life of your bushings significantly in dusty, high-use environments. Highly recommended for farm vehicles and remote touring applications. Ask our team for details and pricing.

---

🛡️ Warranty & Fitment Requirements

This kit includes a 4-Year / Unlimited Kilometre Recreational Warranty — activated only upon professional installation.

• Approved Fitment: Advanced 4x4 Branch in Strand, any authorised Tough Dog fitment centre, or an RMI-accredited workshop
• Warranty Integrity: Valid only when fitted by a professional facility. Fitment invoice must include the vehicle’s odometer reading at time of installation
• Price Excludes: Fitment and wheel alignment. Contact us to book your installation at our Strand branch

---

⭐ Why Choose Tough Dog for the PX Ranger?

Tough Dog is a recognised Second Stage Manufacturer (SSM), with components certified to handle increased Gross Vehicle Mass (GVM) without compromising roadworthiness or legal compliance. Their PX1/PX2 Ranger kit is one of the most thoroughly tested and refined suspension solutions available for this platform — trusted by farmers, overlanders, and fleet operators across Southern Africa for over a decade.

At Advanced 4x4, we stock the full Tough Dog Ranger PX range and can advise on the correct spring load rating, optional greasable shackles, 9-stage adjustable shock upgrades, and fitment bookings at our Strand RMI workshop.

⏳ Lead Time: Please allow 14 business days for production/sourcing if stock is not immediately available.
