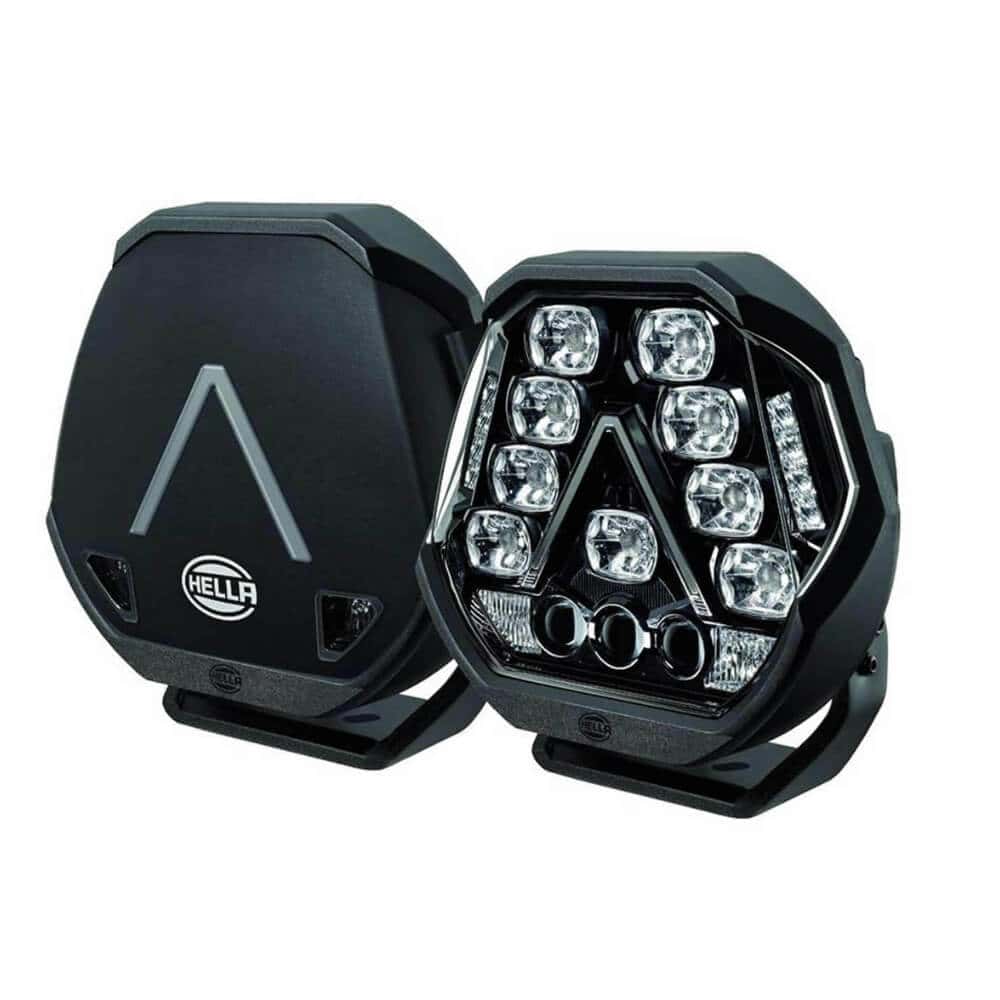

Hella Antares 9" LED Driving Light Set

Hella Antares 9" LED Driving Light Set — 800m Range, 18,000 Lumens, High/Low/DRL

The Hella Antares 9" LED Driving Lights are Hella's flagship auxiliary driving lights, combining extreme long-range performance with intelligent multi-function lighting. With composite LED optics delivering over 800m at 1 Lux and 80m beam width, High and Low power modes, and integrated DRL/position light function — these are the ultimate driving lights for serious off-road and highway use.

Key Features:

• 18,000 Lumens Per Set: 8,500 effective lumens per lamp in High mode — 40 LEDs per pair (20 per lamp) at 5700K colour temperature for crisp, white light.
• 800m+ Beam Distance at 1 Lux: Exceeds 800m distance at 1 Lux with 80m maximum beam width — outstanding visibility on and off the road.
• High & Low Power Modes: 215W (High) and 120W (Low) per lamp — switch between full power and reduced output as conditions require.
• Integrated DRL / Front Position Light: Built-in daytime running light and front position light function — no separate DRL unit required.
• IP69K & IP67 Rated: Dual protection rating — withstands high-pressure washdowns and full water immersion. Built for the harshest conditions.
• Aluminium Housing & Bracket: Die-cast aluminium body and bracket for maximum heat dissipation and long-term durability.
• Active Thermal Management: Built-in thermal protection with polarity reversal and under/over voltage protection — safe and reliable in all conditions.
• Plug & Play Wiring: Integrated DT socket with plug-and-play wiring harness and H4 & HB3 adaptors included — straightforward installation.

Specifications:

• Brand: Hella
• Model: Antares 9" LED Driving Light Set
• SKU: AN871
• Diameter: Approx. 228mm (9")
• Operating Voltage: Multi-voltage (10–30V)
• Power Consumption: 215W (High) | 120W (Low) per lamp
• Light Output: 18,000 lumens per set | 8,500 effective lumens per lamp (High mode)
• LEDs: 40 total (20 per lamp)
• Colour Temperature: 5700K
• Beam Distance: Exceeds 800m at 1 Lux
• Beam Width: 80m maximum
• Housing: Aluminium
• Lens: Hard-coated UV-stabilised polycarbonate
• Bracket: Aluminium
• IP Rating: IP69K & IP67
• EMC: RCM — CISPR25 Class 3
• Temperature Range: -40°C to +65°C
• Mounting: Upright
• Connection: Integrated DT socket, plug-and-play harness, H4 & HB3 adaptors
• Weight: 2.2kg per lamp

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
