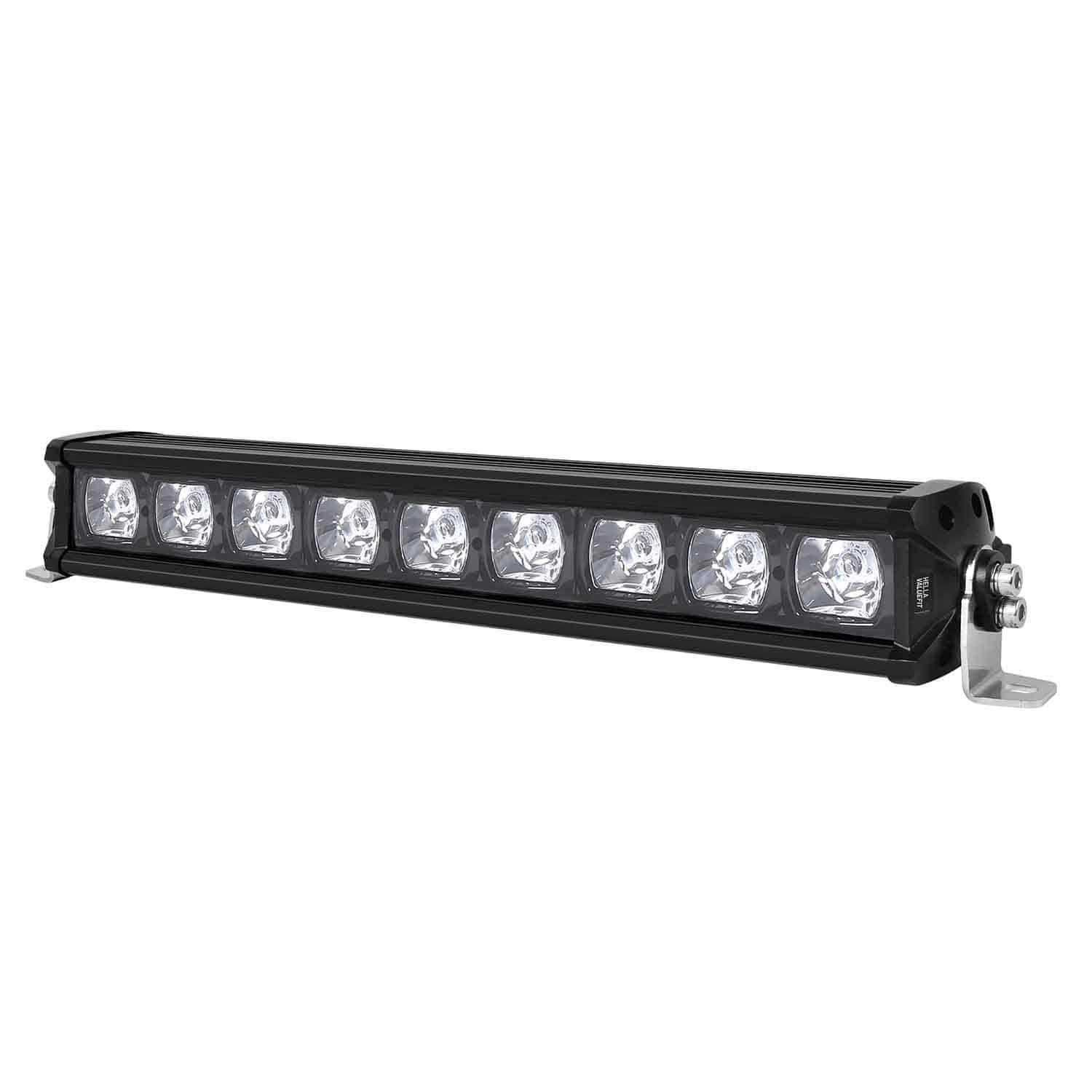

Hella LB 540 LED ECE Driving Light Bar

Hella LB 540 LED ECE Driving Light Bar — 2,900 Lumens | 345m | ECE R112 Approved | 9 High-Power LEDs

The Hella LB 540 LED ECE Driving Light Bar is a road-legal, ECE-approved LED auxiliary driving light bar engineered for 4x4s, SUVs, bakkies, and commercial vehicles. With 9 high-luminous-intensity LEDs delivering 2,900 effective lumens (5,500 raw) and a 345m beam distance at 1 Lux — it provides wide, high-beam illumination in a slim 529mm light strip form factor. Fully ECE type-approved for legal road use.

Key Features:

• 2,900 Effective Lumens | 345m Beam: 9 high-power LEDs with 5,500 raw lumens — wide high-beam illumination of the area in front of the vehicle at 345m at 1 Lux.
• ECE Type-Approved: ECE R112-B (high beam) and ECE R10 (EMC) certified — ECE Reference 37.5. Fully road-legal auxiliary driving light bar.
• Stable Aluminium Housing: Robust aluminium housing with shock-resistant polycarbonate window — built for demanding off-road and commercial applications.
• Multi-Voltage (9–33V): Compatible with 12V and 24V vehicle electrical systems — suitable for passenger vehicles and heavy commercial trucks.
• DT Connector: Industry-standard DT plug connection with 2,000mm adapter lead included — reliable, weatherproof installation.
• Infinitely Variable Mounting: Upright and suspended horizontal mounting with infinitely variable adjustment — precise beam alignment for any installation.
• Slim Light Strip Form Factor: 529mm length, just 40mm high — low-profile design that fits discreetly on bull bars, roof racks, and grille mounts.

Specifications:

• Brand: Hella
• Model: LB 540 LED ECE Driving Light Bar
• SKU: LB540
• LEDs: 9 high-luminous-intensity high-power LEDs
• Effective Lumens: 2,900 lm
• Raw Lumens: 5,500 lm
• Beam Distance: 345m at 1 Lux
• ECE Reference: 37.5
• Operating Voltage: 9–33V (Multi-voltage)
• Housing: Aluminium
• Lens: Shock-resistant polycarbonate
• Connection: DT plug
• Cable: 2,000mm adapter lead (included)
• Certification: ECE R112-B, ECE R10
• Mounting: Upright / suspended, infinitely variable (horizontal)
• Dimensions: 529mm (L) x 40mm (H) x 57mm (D)
• Weight: 0.95kg

What's in the Box:

• 1x Hella LB 540 LED Light Bar with bracket
• 2,000mm adapter lead
• Mounting hardware and instructions

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
