Hella Black Magic LED 2.7" Cube Flood Light Kit

Hella Black Magic LED 2.7" Cube Flood Light Kit — 1,600 Lumens | 40m | Complete Kit | AAPEX & SEMA Award Winner

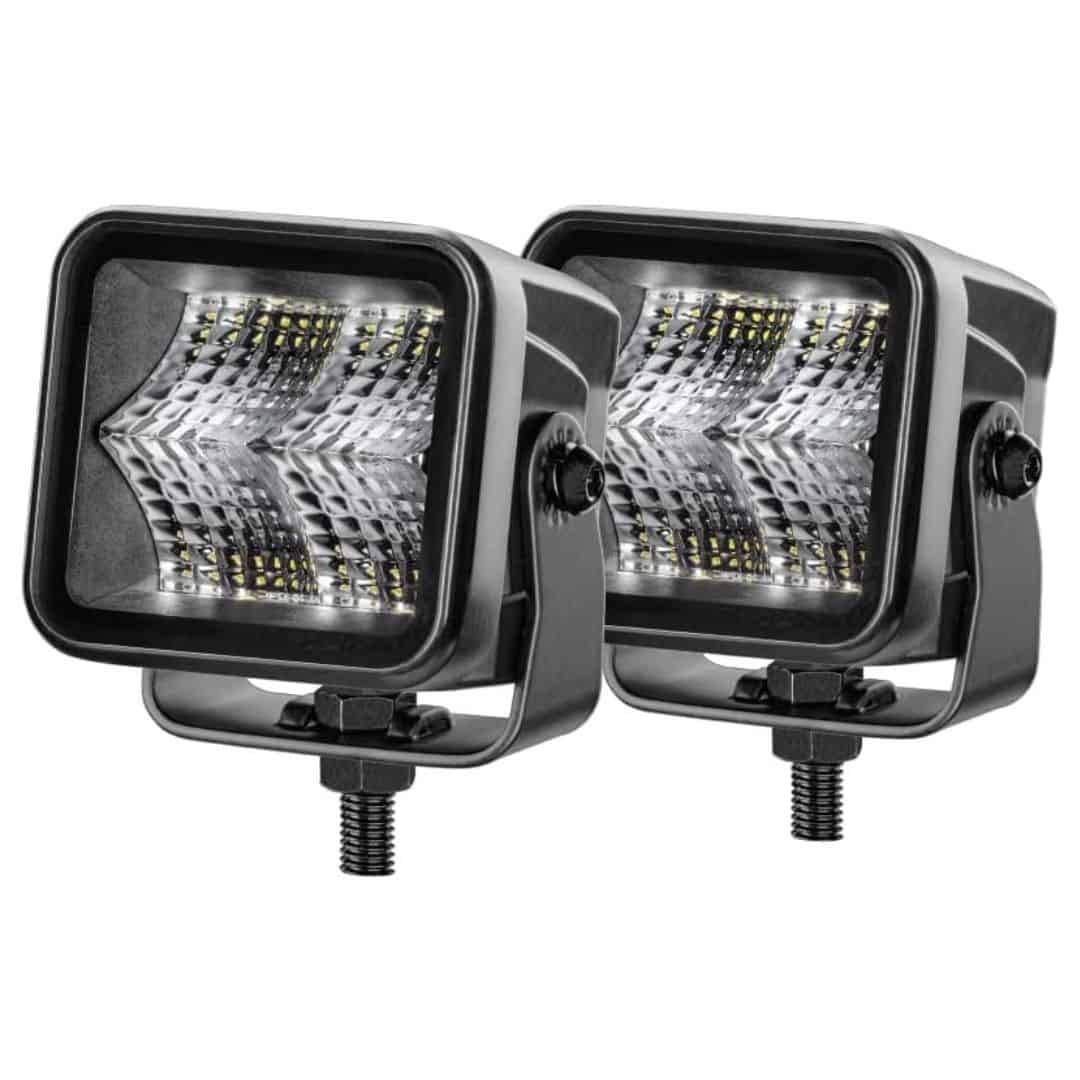

The Hella Black Magic LED 2.7" Cube Flood Light Kit is the most compact model in the Black Magic Cube range — a complete plug-and-play auxiliary LED flood light kit engineered for off-road, agricultural, and construction use. With 2x mini cube flood lights delivering 1,600 effective lumens combined (800 per lamp) at 40m at 1 Lux, flush or upright/pendant mounting, and a full blackout design — ideal for tight mounting positions on 4x4s, bakkies, tractors, and construction machinery. Winner of the prestigious AAPEX Best New Product Award 2021 and SEMA Global Media Award 2021.

Key Features:

• 1,600 Effective Lumens (Kit): 2x cube flood lights at 800 effective lumens each — wide flood pattern for broad, close-range illumination at 40m at 1 Lux.
• Complete Plug & Play Kit: Everything included — 2x LED cube lights, relay, illuminated switch, DT connector wiring harness, and mounting instructions. Ready to install.
• Ultra-Compact 2.7" Form Factor: 70x70x60mm per lamp — fits in the tightest mounting positions where larger cubes won't.
• Flush / Upright / Pendant Mounting: Maximum mounting flexibility — flush mount for a clean integrated look, or upright/pendant for standard installations.
• Multi-Voltage (10–30V): Compatible with 12V and 24V systems — suitable for passenger vehicles, commercial trucks, tractors, and construction machinery.
• Full Blackout Appearance: Aluminium housing with black stainless steel bracket — aggressive, stealth aesthetic with subtle Hella branding.
• Comprehensive Protection: Polarity reversal protection, over-voltage protection, vibration resistant, and CE certified — built for the harshest conditions.
• Award-Winning Design: AAPEX Best New Product Award 2021 (Automotive Lighting) and SEMA Global Media Award 2021 — recognised by industry professionals worldwide.

Specifications:

• Brand: Hella
• Model: Black Magic LED 2.7" Cube Flood Kit
• SKU: HBM27CK
• Beam Type: Flood
• Effective Lumens: 1,600 lm (kit) | 800 lm per lamp
• Beam Distance: 40m at 1 Lux
• Operating Voltage: 10–30V (Multi-voltage)
• Light Source: LED
• Housing: Aluminium
• Bracket: Black stainless steel
• Mounting: Flush / upright / pendant
• Connection: DT connector
• Cable: 500mm with DT connector + short adapter harness
• Protection: Polarity reversal, over-voltage, vibration resistant
• Certification: CE
• Dimensions (per lamp): 70mm (L) x 70mm (H) x 60mm (D)
• Weight: 0.72kg (complete kit)

What's in the Box:

• 2x Hella Black Magic LED 2.7" Cube Flood Lights
• 1x Wiring harness with DT connector
• 1x Relay
• 1x Illuminated switch
• Mounting instructions

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
