Hella Black Magic LED 3.2" Cube Spot Light Kit (Flush Mount)

Hella Black Magic LED 3.2" Cube Spot Light Kit (Flush Mount) — 3,000 Lumens | 250m | Complete Kit | AAPEX & SEMA Award Winner

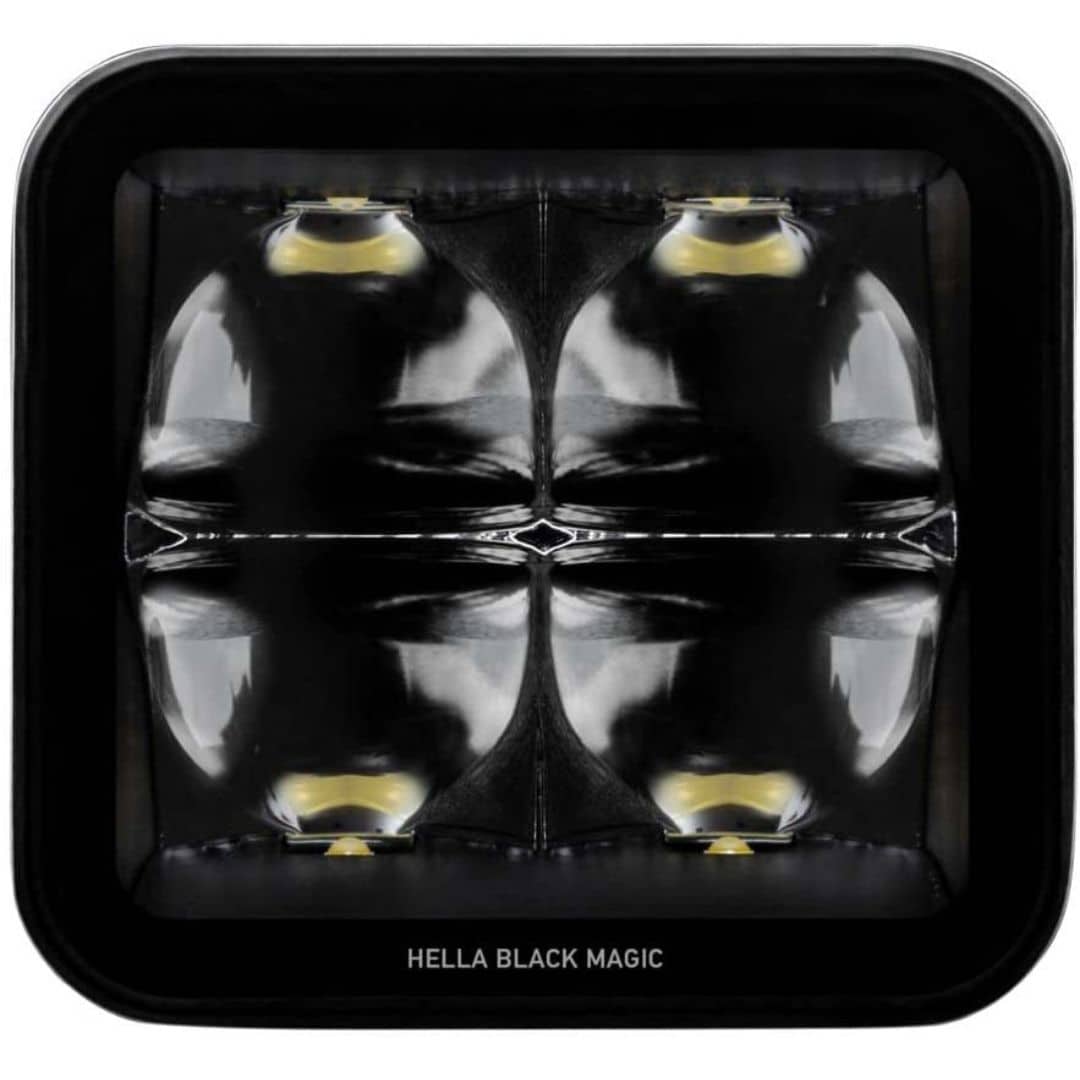

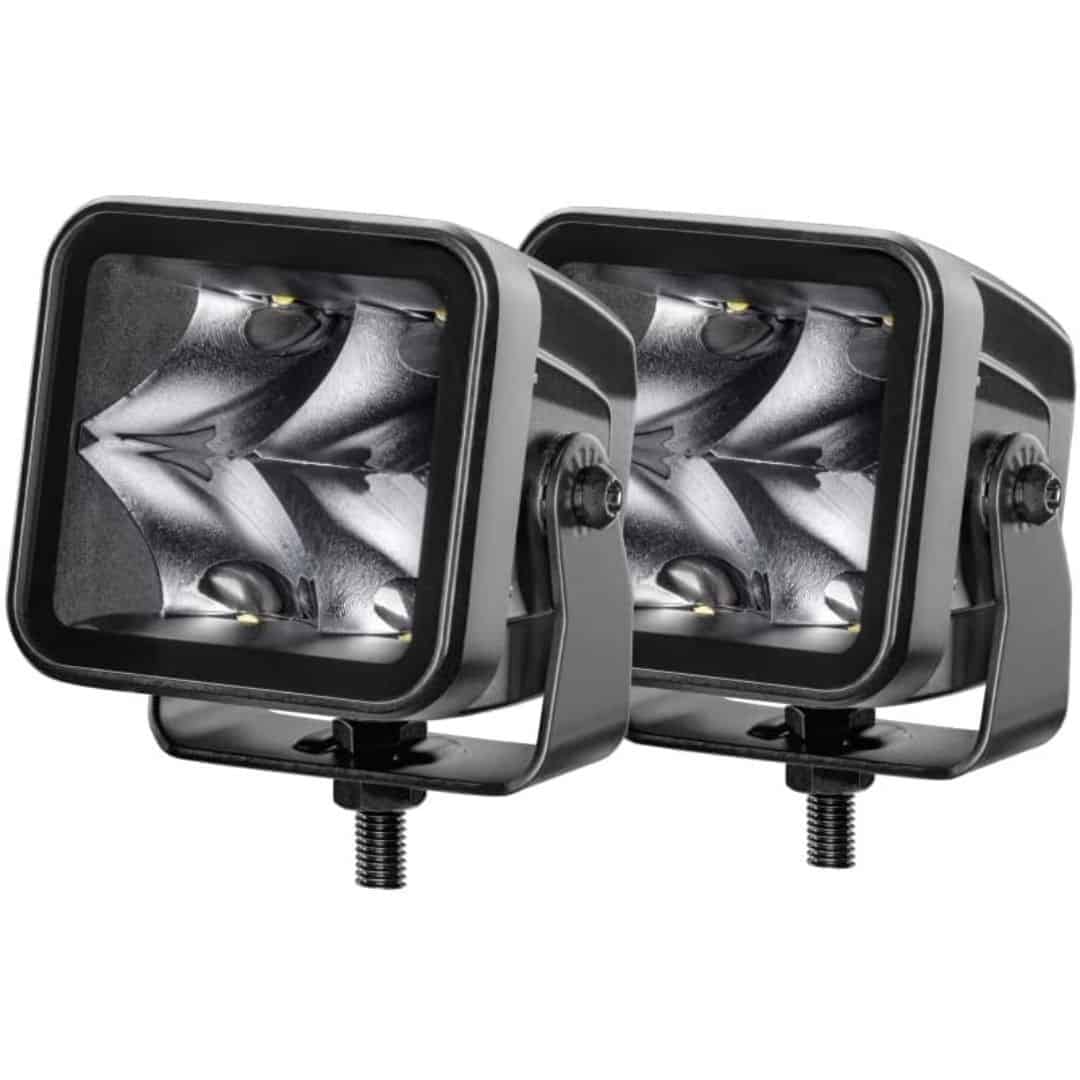

The Hella Black Magic LED 3.2" Cube Spot Light Kit is a compact, complete plug-and-play auxiliary LED spot light kit engineered for serious off-road, agricultural, and construction use. With 2x cube spot lights delivering 3,000 effective lumens combined (1,500 per lamp) at 250m at 1 Lux, flush or upright/pendant mounting, and a full blackout design — it's the ideal long-range lighting solution for 4x4s, bakkies, tractors, and construction machinery. Winner of the prestigious AAPEX Best New Product Award 2021 and SEMA Global Media Award 2021.

💡 Spot vs Flood: This is the Spot beam version — optimised for long-range focused illumination (250m at 1 Lux). For wide, close-range coverage, see the Flood beam version (55m at 1 Lux).

Key Features:

• 3,000 Effective Lumens (Kit): 2x cube spot lights at 1,500 effective lumens each — focused spot pattern for long-range illumination at 250m at 1 Lux.
• Complete Plug & Play Kit: Everything included — 2x LED cube lights, relay, illuminated switch, DT connector wiring harness, and mounting instructions. Ready to install.

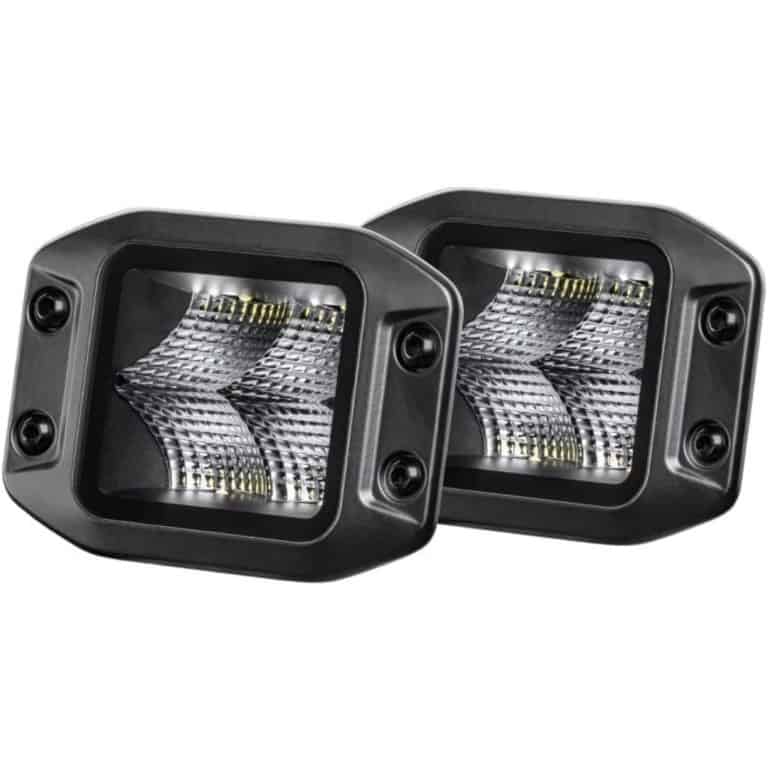

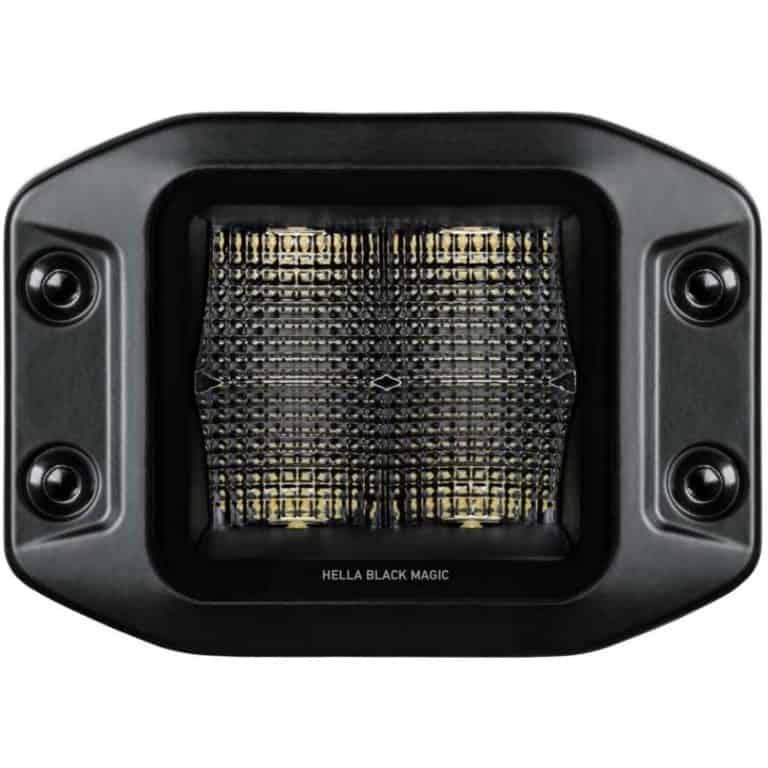

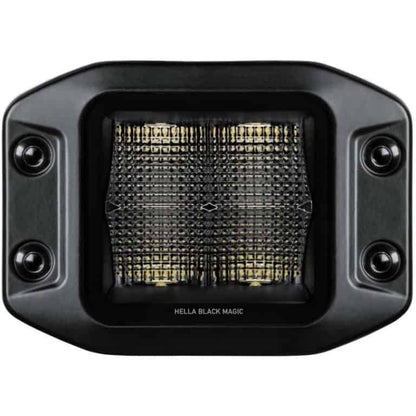

• Flush Mount Design: Clean, integrated flush mounting for a factory-fit look — also supports upright and pendant mounting for maximum versatility.
• Multi-Voltage (10–30V): Compatible with 12V and 24V systems — suitable for passenger vehicles, commercial trucks, tractors, and construction machinery.

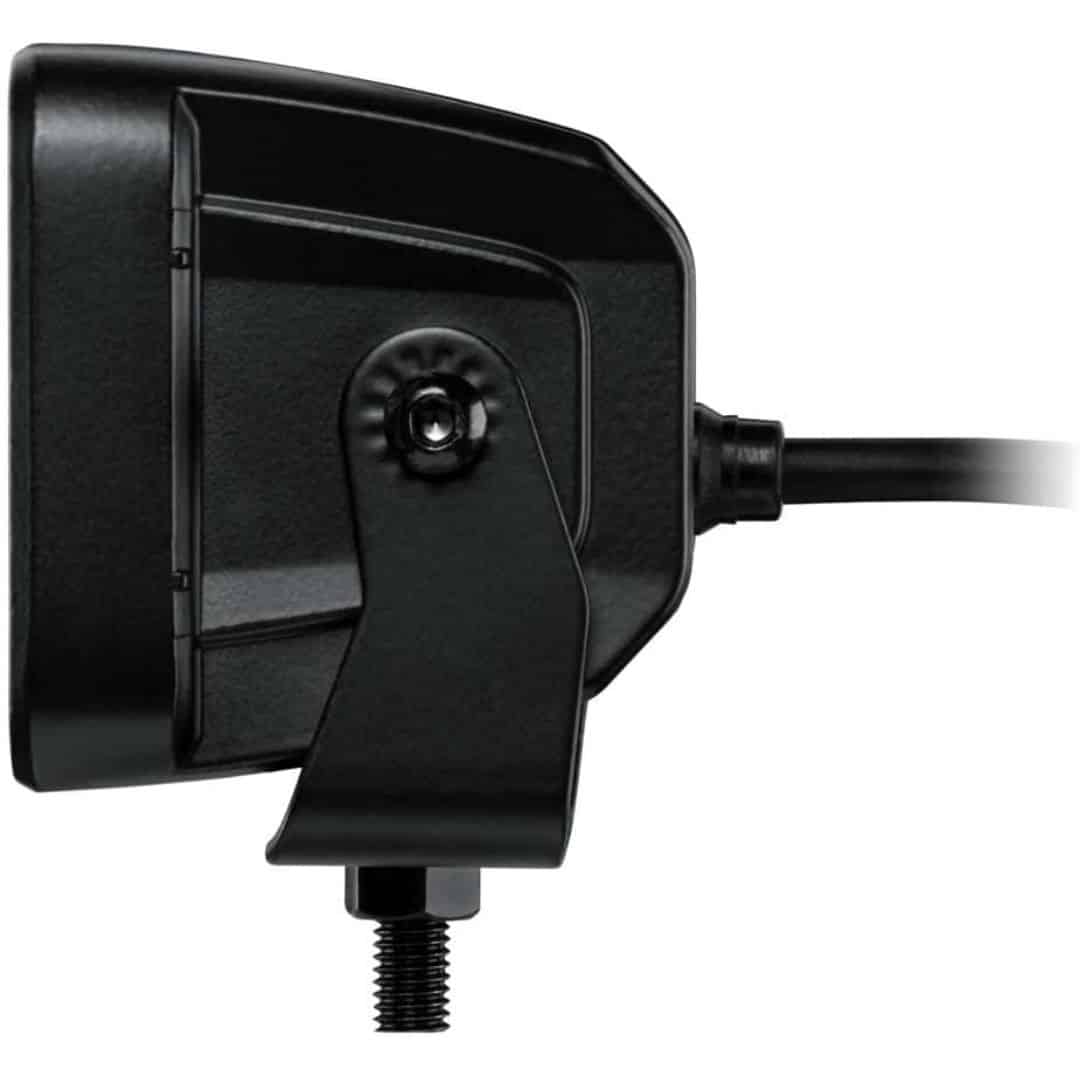

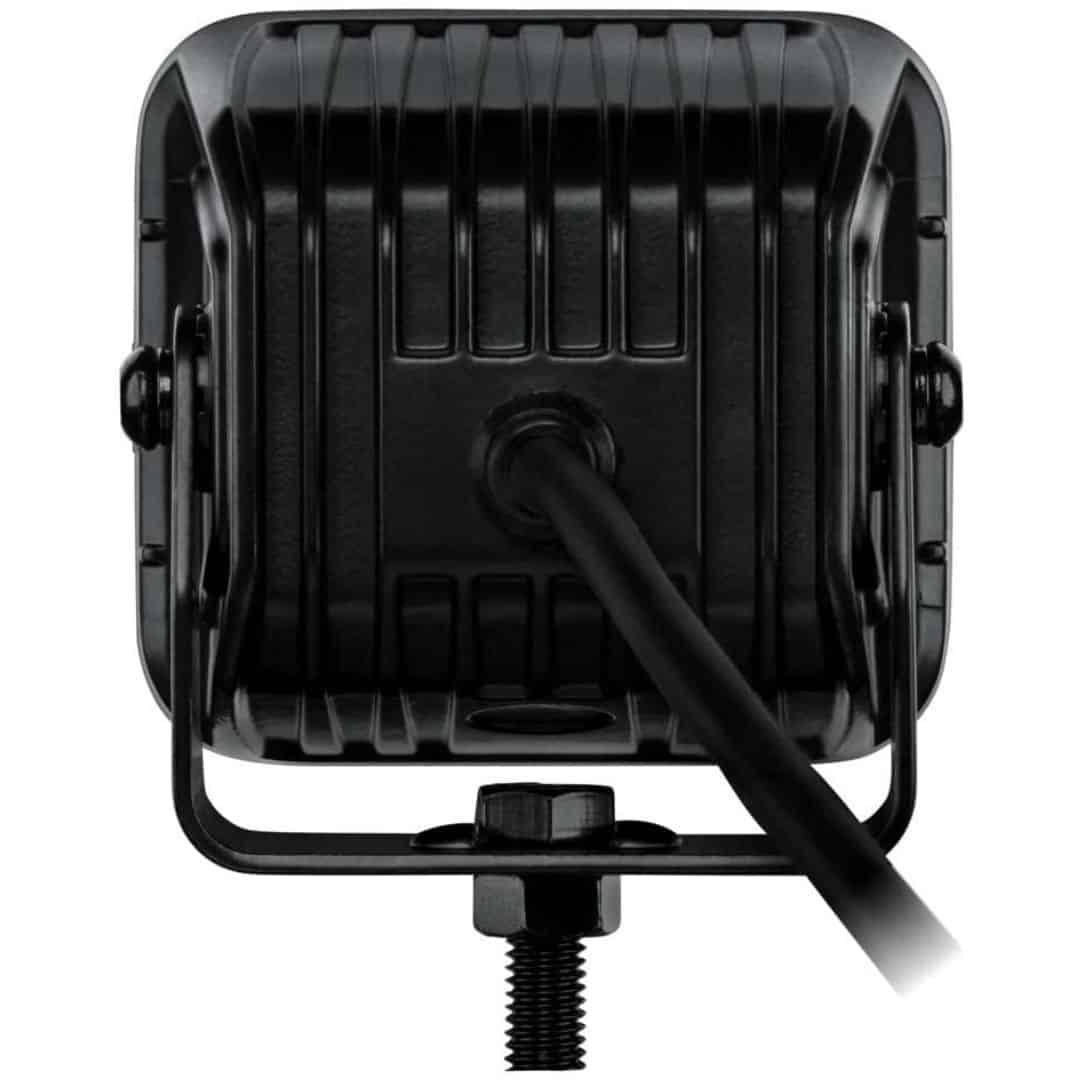

• Full Blackout Appearance: Aluminium housing with black stainless steel bracket — aggressive, stealth aesthetic with subtle Hella branding.
• Comprehensive Protection: Polarity reversal protection, over-voltage protection, vibration resistant, and CE certified — built for the harshest conditions.

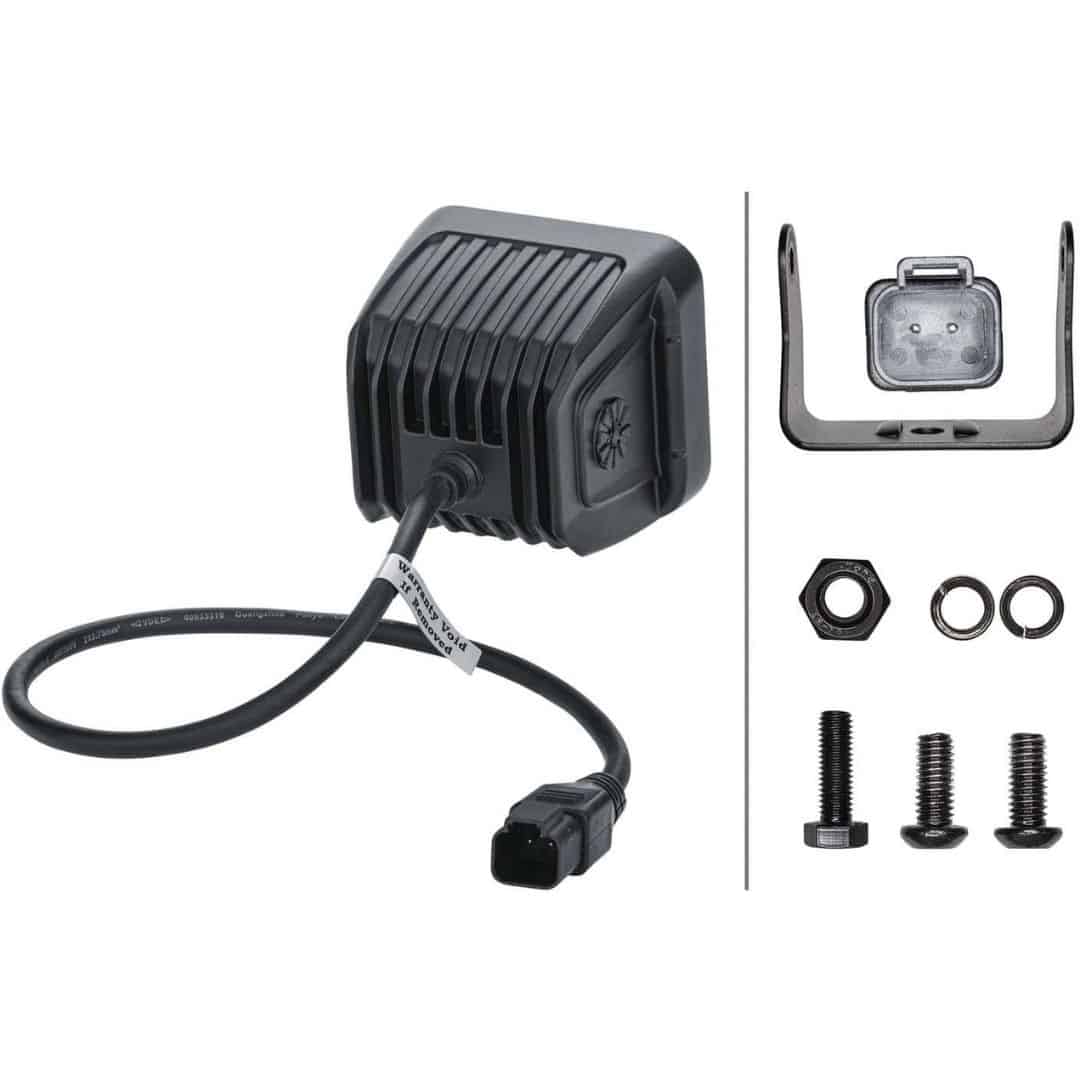

• DT Connector: Industry-standard DT connector with 500mm cable + short adapter harness — reliable, weatherproof connection.
• Award-Winning Design: AAPEX Best New Product Award 2021 (Automotive Lighting) and SEMA Global Media Award 2021 — recognised by industry professionals worldwide.

Specifications:

• Brand: Hella
• Model: Black Magic LED 3.2" Cube Spot Kit (Flush)
• SKU: 1FA 358 176-821
• Beam Type: Spot
• Effective Lumens: 3,000 lm (kit) | 1,500 lm per lamp

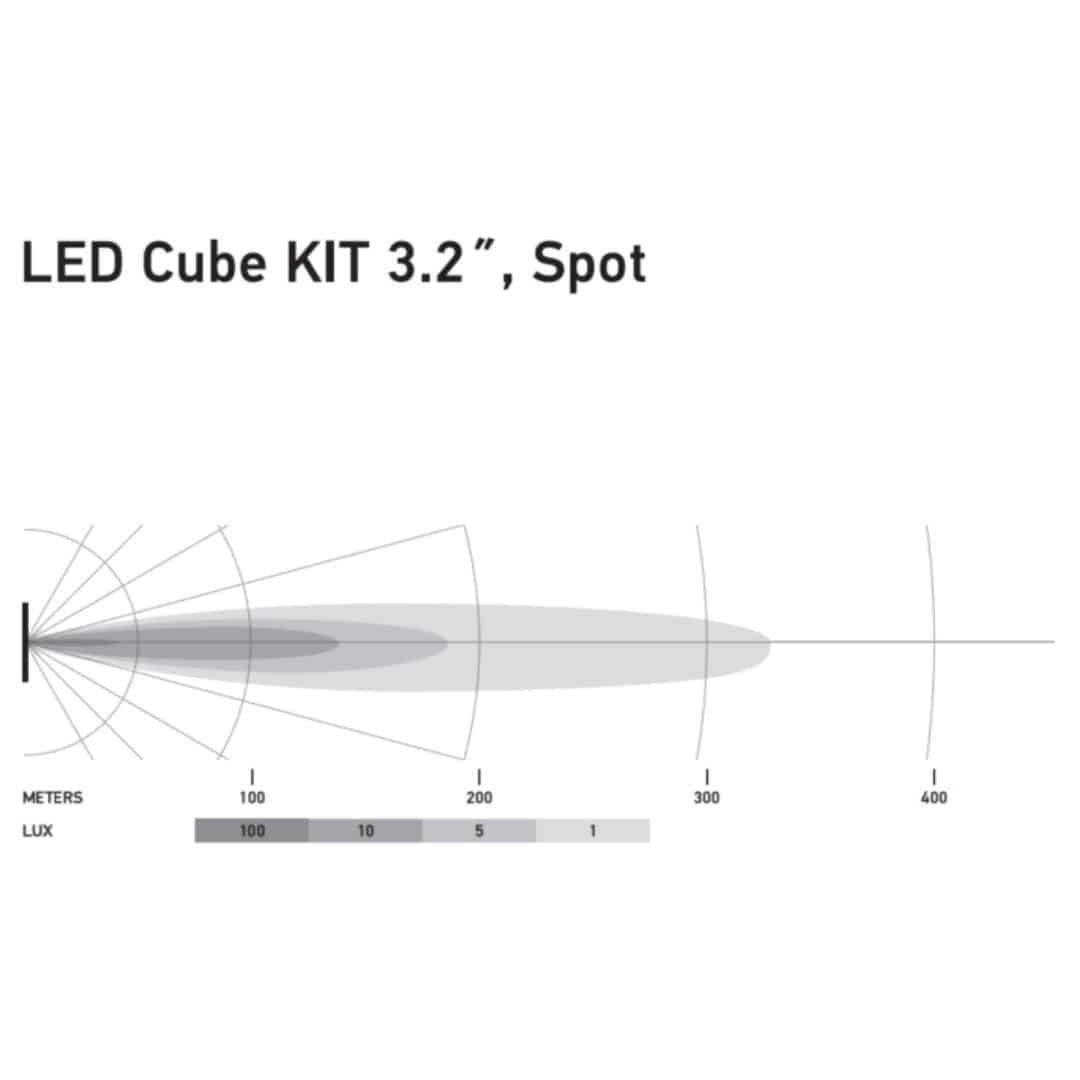

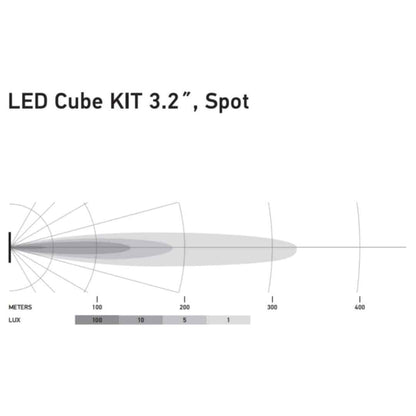

• Beam Distance: 250m at 1 Lux
• Operating Voltage: 10–30V (Multi-voltage)
• Light Source: LED
• Housing: Aluminium
• Bracket: Black stainless steel
• Mounting: Flush / upright / pendant
• Connection: DT connector
• Cable: 500mm with DT connector + short adapter harness
• Protection: Polarity reversal, over-voltage, vibration resistant
• Certification: CE

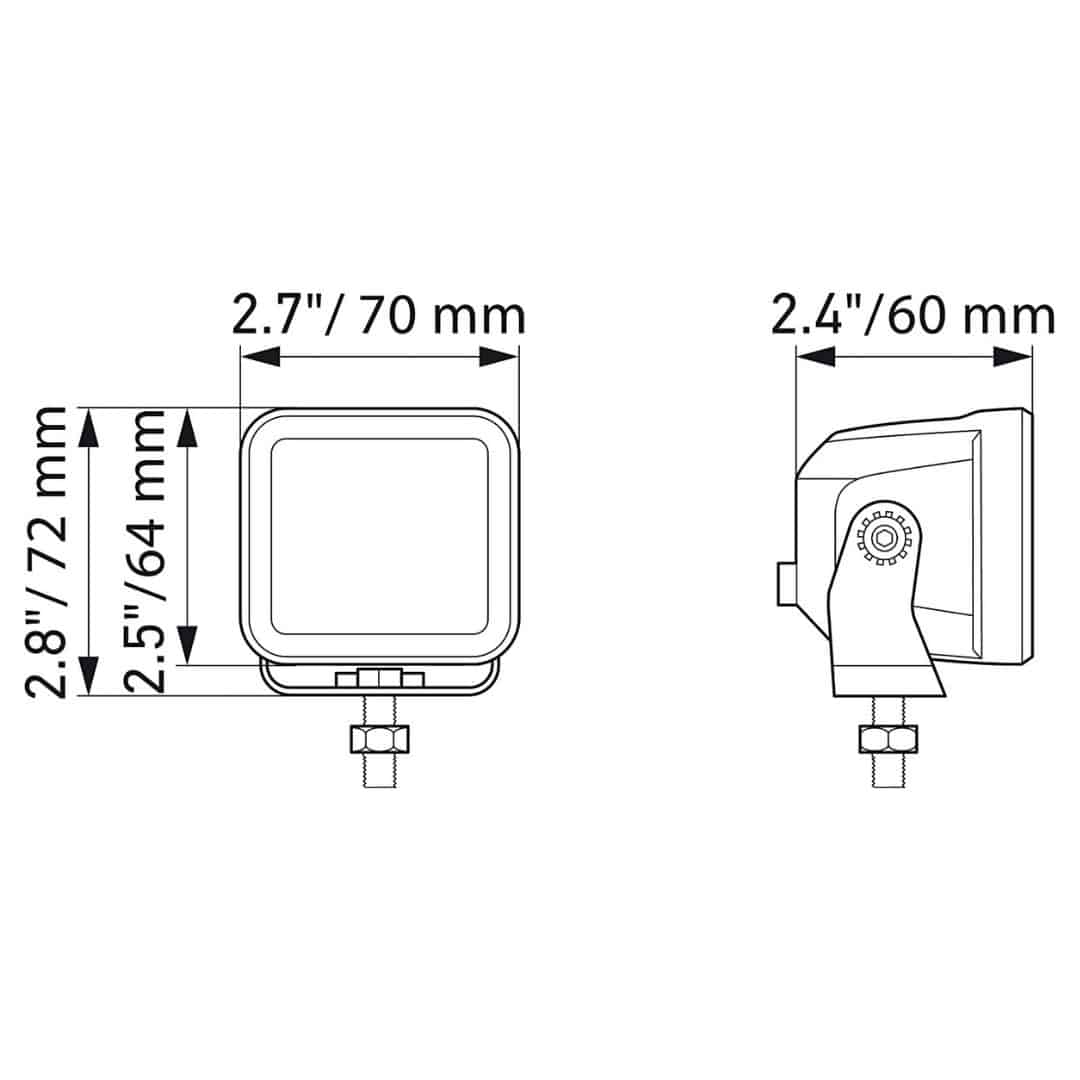

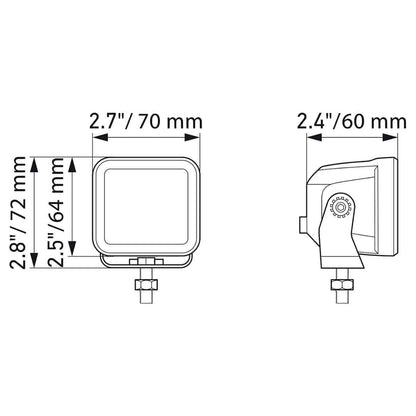

• Dimensions (per lamp): 81mm (L) x 81mm (H) x 68mm (D)
• Weight: 0.95kg (complete kit)

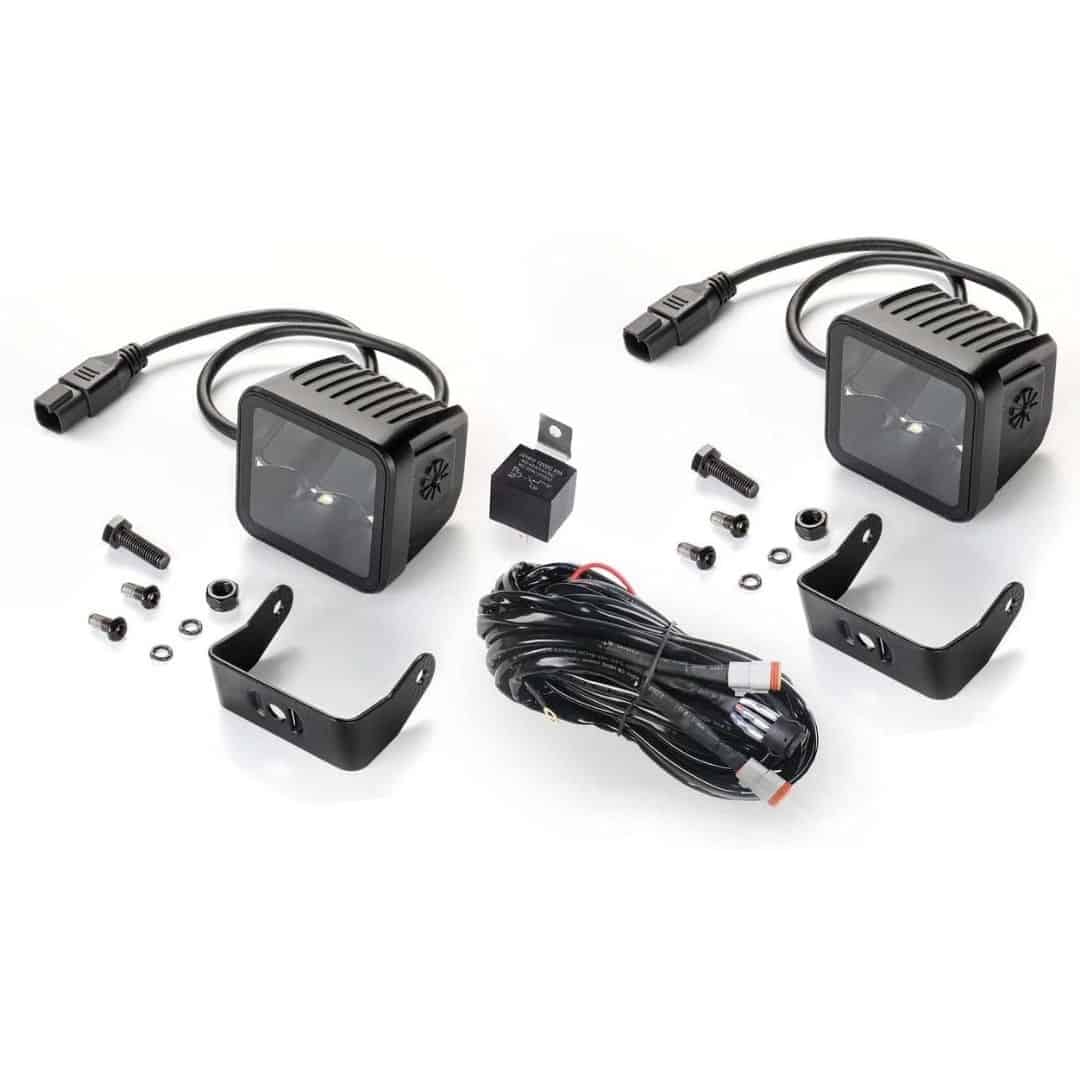

What's in the Box:

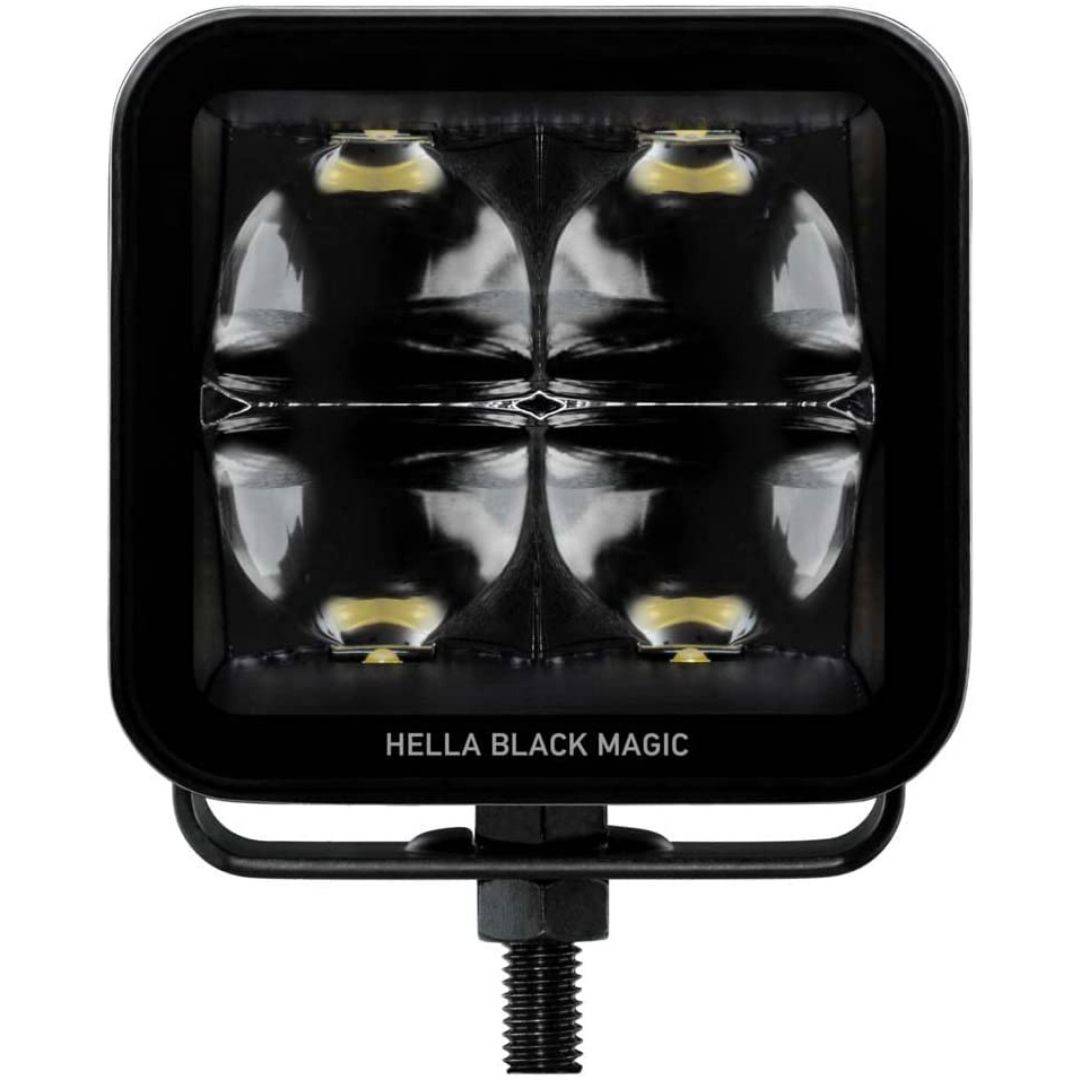

• 2x Hella Black Magic LED 3.2" Cube Spot Lights
• 1x Wiring harness with DT connector
• 1x Relay
• 1x Illuminated switch
• Mounting instructions

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
