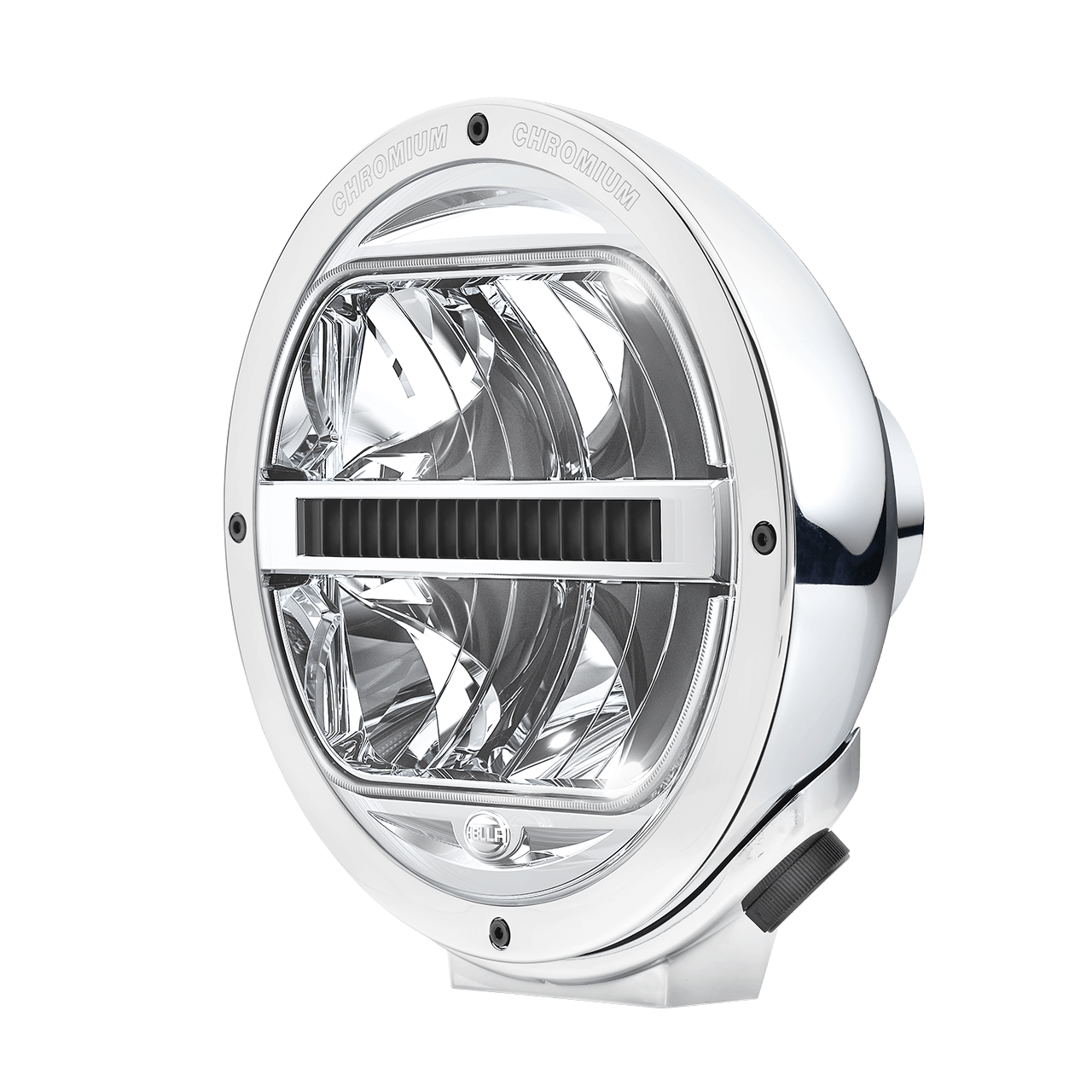

Hella Luminator LED Chromium 50 Auxiliary Driving Light (Single)

Hella Luminator LED Chromium 50 Auxiliary Driving Light — ~1,500 Lumens | 400–600m | ECE R112 | Sold Individually

The Hella Luminator LED Chromium 50 is a premium, full-metal auxiliary driving light combining futuristic design with state-of-the-art LED technology. With ~1,500 effective lumens, a 400–600m beam distance at 1 Lux (pattern dependent), integrated LED position light with EdgeLight technology, and a replaceable LED headlamp insert — it's one of the most sophisticated auxiliary driving lights available for serious 4x4 and commercial applications. Sold as a single lamp.

Key Features:

• ~1,500 Effective Lumens | 400–600m Beam: High beam with ECE reference number 50 — 1 Lux at 400–600m depending on beam pattern. Immediate response for attention-grabbing headlight flashing.
• LED Position Light with EdgeLight Technology: Striking hexagonal contoured LED position light with EdgeLight technology for a more intensive, characteristic appearance by day and night — clear, cold-white light.
• Replaceable LED Headlamp Insert: Shock-resistant PC cover lens with a replaceable LED insert — long-term serviceability without replacing the entire unit.
• Full-Metal Zinc Die-Cast Housing: Sturdy, high-quality full-metal headlamp with chrome housing and zinc die-cast fixing bracket — premium build quality for demanding applications.
• Efficient Thermal Management: Horizontal cooling fin with 230cm² cooling surface — effective heat dissipation for long-term LED reliability.
• Tool-Free Comfort Pre-Adjustment: Mounting bracket with tool-free tilt pre-adjustment for precise beam alignment without tools.
• Multi-Voltage (9–32V): Compatible with 12V and 24V systems — suitable for passenger vehicles and heavy commercial trucks.
• ECE Type-Approved: ECE R112 (high beam), ECE R7 (position light), ECE R10 (EMC) — fully road-legal auxiliary driving light.

Specifications:

• Brand: Hella
• Model: Luminator LED Chromium 50
• SKU: 1F8 016 560-031
• ECE Reference: 50
• Effective Lumens: ~1,500 lm
• Beam Distance: 400–600m at 1 Lux (pattern dependent)
• Light Functions: High beam (LED) + Position light (LED)
• Operating Voltage: 9–32V (Multi-voltage)
• Power @ 12V: Position light 2.4W | High beam 14.5W
• Power @ 24V: Position light 5W | High beam 14.5W
• Housing: Zinc die-cast (Chrome)
• Lens: Clear, transparent
• IP Rating: IP6K7 / X9K
• Cable: 800mm
• Certification: ECE R112.01, ECE R7, ECE R10 EMC
• Mounting: Vertical, upright
• Dimensions: 232.5mm (H) x 224.4mm (W) x 129.6mm (D) | 8.8" diameter
• Weight: 2.7kg (single lamp)
• Sold As: Single lamp

What's in the Box:

• 1x Hella Luminator LED Chromium 50 with bracket
• Mounting hardware and instructions

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
