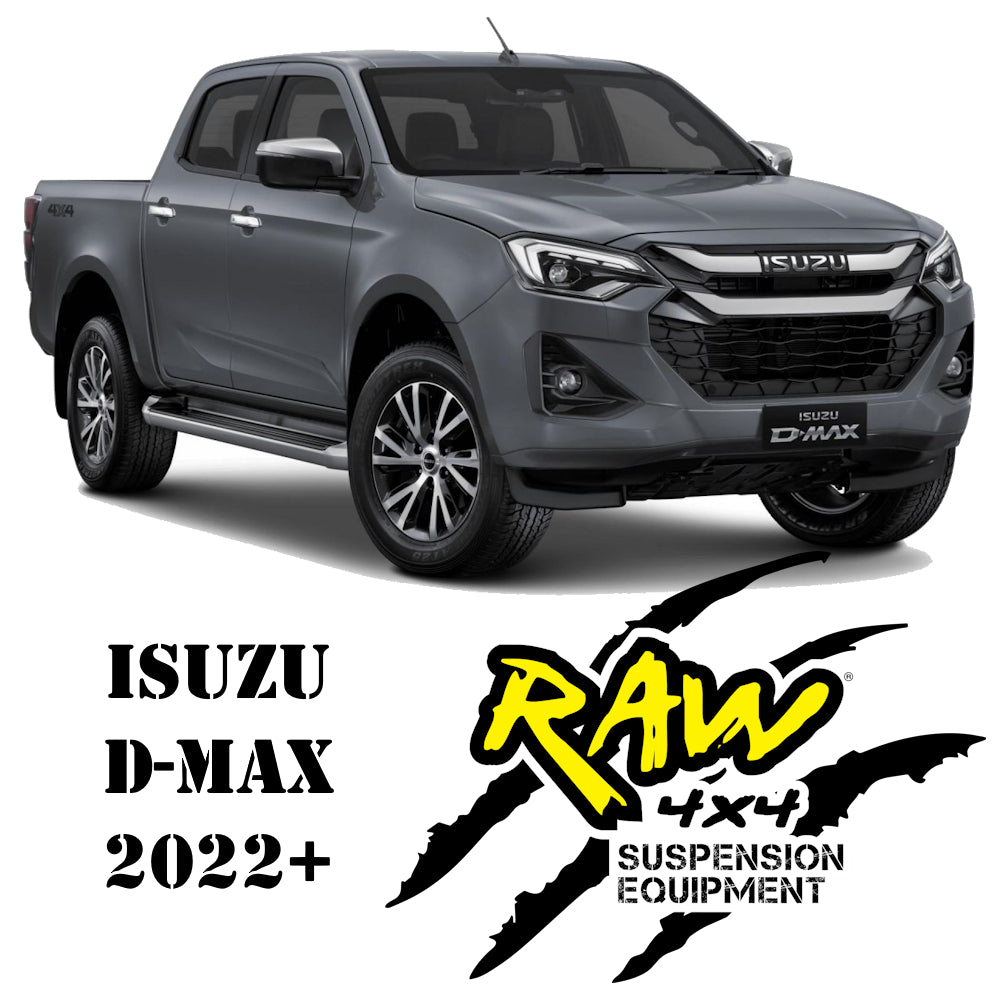

RAW 4x4 Heavy-Duty Suspension Lift Kit – Isuzu D-Max RG (2022+)

RAW 4x4 Heavy-Duty Suspension Lift Kit – Isuzu D-Max RG Series (2022–Present)

Fix your bakkie’s load handling and upgrade its trail performance with the commercial truck-tough RAW 4x4 Heavy-Duty Suspension Kit for the Isuzu D-Max RG Series (2022+), including the 1.9 Ddi and 3.0 Ddi V-Cross models. Born from a legacy of heavy commercial vehicle engineering by Powerdown, this system eliminates the soft, wallowing unladen ride of the stock D-Max while providing up to 50mm of ground clearance — carefully engineered to remain within safe operating thresholds for the front CV axles and steering linkages.

Whether you’re packing a Quick Pitch Quick-en-Suite Box Unit or carrying full overlanding equipment, the upgraded front coils and R-ISU16B Constant-Load Leaf Springs stop dangerous rear-end sag dead in its tracks. Equipped with massive 45mm-bore Nitro Max shocks in a 61mm outer tube with multi-lip HNBR high-temperature seals, this kit completely eradicates dampening fade over hours of brutal corrugated gravel bush tracks.

Kit Components & Part Numbers

• Front Nitro Max Struts – Pair (NM1485S) – 45mm bore, 61mm outer tube, multi-lip HNBR high-temperature seals
• Front Raised Coil Springs (RC-1382) – 0–50kg / Comfort Touring
• Front Heavy-Duty Raised Coil Springs (RC-1383) – 50–100kg / Steel Bumper & Winch — mandatory to counteract heavy replacement steel bullbars
• Rear Nitro Max Shock Absorbers – Pair (NM992M1) – matched rear damping
• Rear Heavy-Duty Leaf Springs (R-ISU16A) – Medium load, 0–150kg constant
• Rear Extra Heavy-Duty Leaf Springs (R-ISU16B) – Constant 300kg+ for RTT, canopies & drawers
• Polyurethane Bush & U-Bolt Fitting Kit (RAW-BU-ISU22) – complete hardware included

Technical Specifications

• Total Lift: 40mm – 50mm over factory ride height
• Kit Weight: ~65–71kg (commercial-grade multi-leaf rear packs)
• Packaged Dimensions: 1,340mm × 460mm × 300mm
• Shock Bore: 45mm | Outer Tube: 61mm steel | Sealing: Multi-lip HNBR high-temperature

Warranty

Industry-leading 3-Year / 60,000km Warranty — covers leaf sagging, coil fracturing, and high-pressure oil seal blowouts under heavy overlanding loads.

Professional Fitment Available Nationwide

Prefer to have it fitted by experts? Advanced 4x4 offers professional fitment at our fitment centres across South Africa. Simply place your order online and contact us to book your fitment appointment at the centre nearest to you. Our trained technicians will ensure your suspension kit is installed correctly for optimal performance and safety.

Selecting the Right Configuration

To ensure you receive the correct spring rate for your build, please specify your setup at checkout:

• Front-end weight: Standard Bumper / Replacement Steel Bullbar & Winch
• Rear-end setup: Light–Medium Loads (0–150kg) / Permanent 300kg+ Canopy, RTT & Camp Setup

⏳ Lead Time: Please allow 14 business days for production/sourcing if stock is not immediately available.
