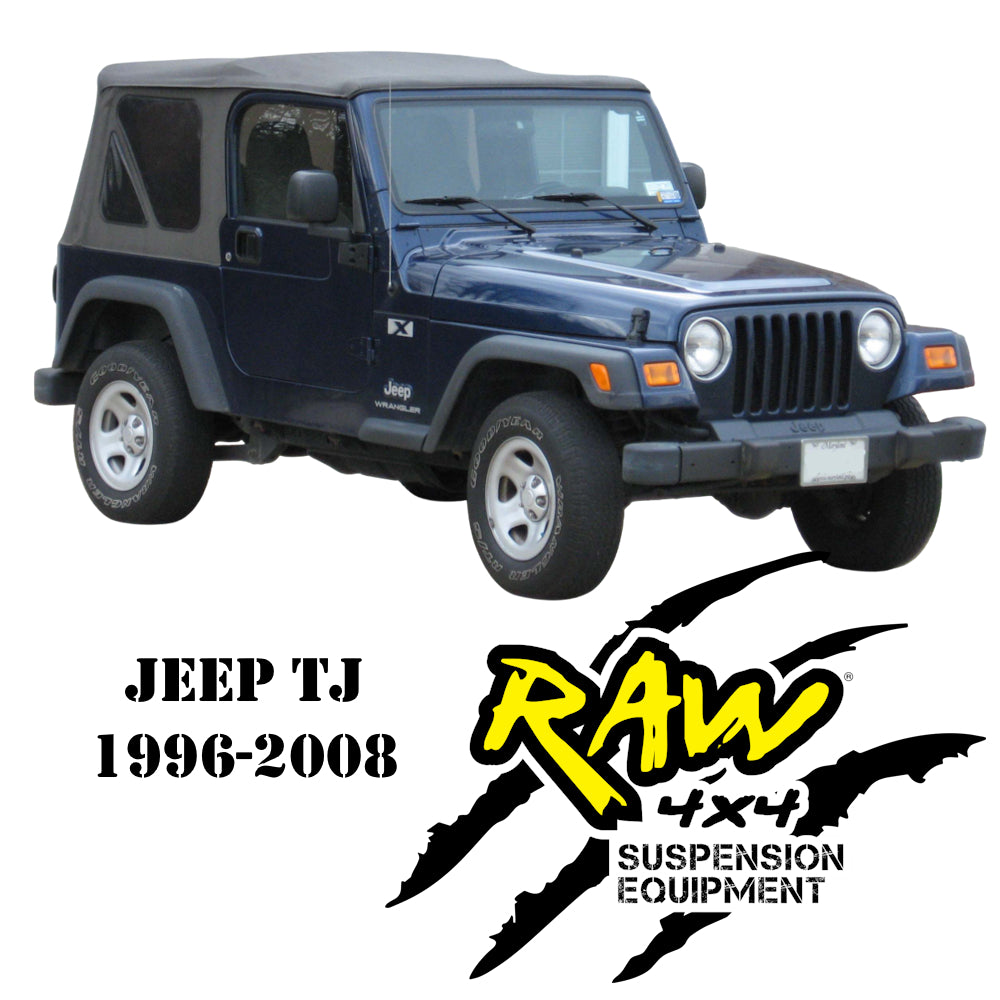

RAW 4x4 Heavy-Duty Suspension Lift Kit – Jeep Wrangler TJ (1996–2006)

RAW 4x4 Heavy-Duty Suspension Lift Kit – Jeep Wrangler TJ (1996–2006)

Upgrade your classic short-wheelbase trail machine’s load capacity and highway handling with the commercial truck-tough RAW 4x4 Heavy-Duty Suspension Kit for the Jeep Wrangler TJ (1996–2006), covering all 2.5L and the iconic 4.0L straight-six Sport, Sahara, and Rubicon variants. Born from a rich pedigree of heavy commercial vehicle engineering by Powerdown, this system replaces fatigued factory coils and failing twin-tube dampers to provide up to 40mm of ground clearance — carefully limited to prevent severe driveline vibrations or requiring an immediate slip-yoke eliminator conversion.

The TJ generation was the first Wrangler to use a quadra-coil live-axle suspension setup in place of traditional leaf springs, and this kit is purpose-engineered for that platform. Whether you’re packing a Quick Pitch Quick-en-Suite Box Unit, permanent rooftop tents, or tracking cross-border over corrugated gravel routes, the upgraded coils and RC-JPTJR-HD Constant-Load Rear Springs stop rear-end sag dead in its tracks. Equipped with heavy-duty charged Nitro shocks with multi-stage velocity-sensitive disk valving calibrated to mitigate the signature nose-dive during braking and highway body roll common to short-wheelbase live-axle Jeeps.

Kit Components & Part Numbers

• Front Nitro Gas Shock Absorbers – Pair (G0113) – 35mm bore, nitro-charged, includes poly bushes & protective dust boots
• Front Raised Coil Springs (RC-JPTJF) – 0–50kg / Standard Touring
• Front Heavy-Duty Raised Coil Springs (RC-JPTJF-HD) – 50–100kg / Steel Bumper & Winch
• Rear Nitro Gas Shock Absorbers – Pair (G0114) – matched rear damping for live rear axle
• Rear Heavy-Duty Coil Springs (RC-JPTJR) – 0–150kg / Everyday Touring
• Rear Extra Heavy-Duty Coil Springs (RC-JPTJR-HD) – Constant 250kg+ for RTT, drawers & permanent overland builds
• Heavy-Duty Steering Damper Upgrade (RAW-SD-5011) – strongly recommended (see note below)

⚠️ Important: Steering Damper Strongly Recommended

The short-wheelbase Jeep TJ is highly prone to steering feedback issues — commonly known as “death wobble” — when factory steering joints fatigue, particularly after a lift installation. We strongly recommend adding the Heavy-Duty Steering Damper Upgrade (RAW-SD-5011) to your order to eliminate this risk and ensure safe, confident steering on all surfaces.

Technical Specifications

• Total Lift: 40mm (1.5 inches) over factory ride height
• Kit Weight: ~32–35kg (four-coil setup — lighter than leaf-spring bakkie kits)
• Packaged Dimensions: 840mm × 450mm × 280mm
• Shock Bore: 35mm nitro-charged | Expanded steel outer tube | Valving: Multi-stage velocity-sensitive disk

Warranty

Industry-leading 3-Year / 60,000km Warranty — covers progressive coil sagging, fracturing, and high-pressure oil seal blowouts under extreme trail conditions.

Professional Fitment Available Nationwide

Prefer to have it fitted by experts? Advanced 4x4 offers professional fitment at our fitment centres across South Africa. Simply place your order online and contact us to book your fitment appointment at the centre nearest to you. Our trained technicians will ensure your suspension kit is installed correctly for optimal performance and safety.

Selecting the Right Configuration

To ensure you receive the correct spring rate for your build, please specify your setup at checkout:

• Front-end weight: Standard Touring / Steel Bumper & Winch
• Rear-end setup: Comfort / Touring (0–150kg) / Permanent 250kg+ Overland Build (RTT, drawers & camp gear)

⏳ Lead Time: Please allow 14 business days for production/sourcing if stock is not immediately available.
