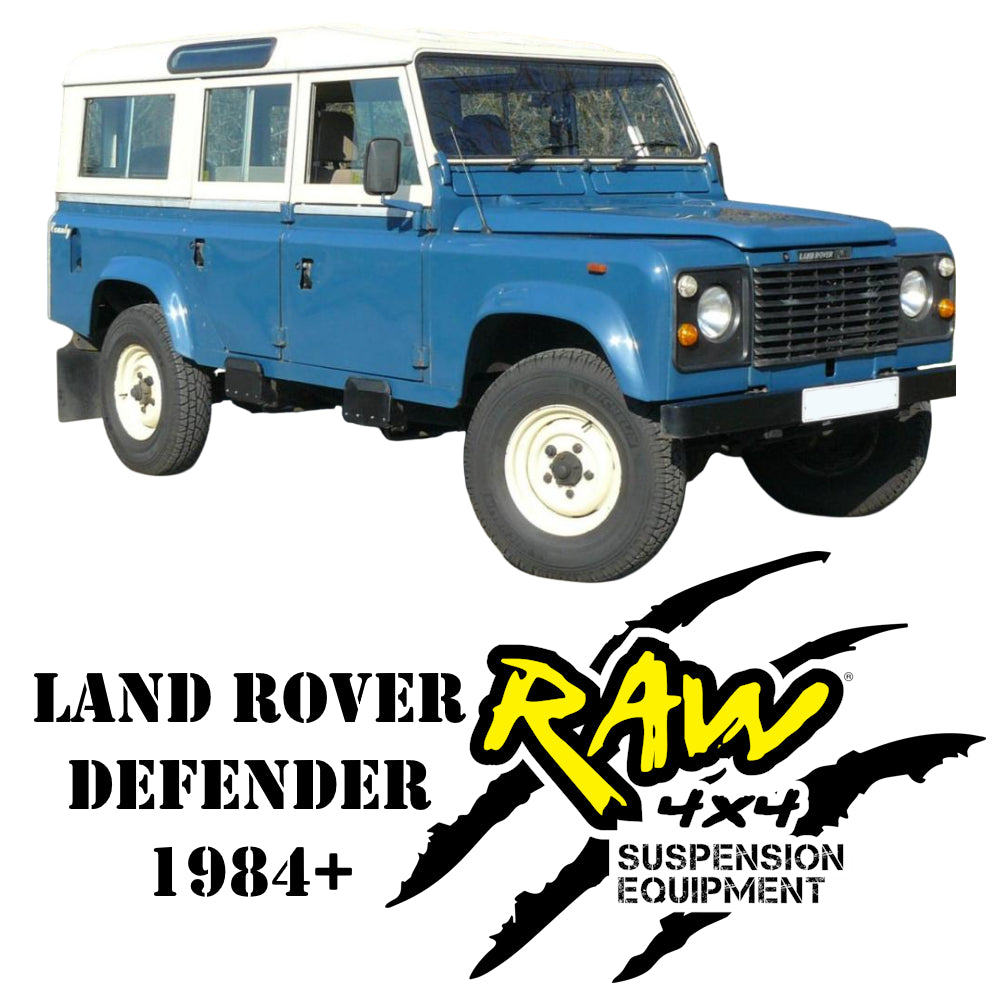

RAW 4x4 Heavy-Duty Suspension Lift Kit – Land Rover Defender 110 & 130 (1984–2016)

RAW 4x4 Heavy-Duty Suspension Lift Kit – Land Rover Defender 110 & 130 (1984–2016)

Transform your classic overlander’s load capacity and off-road handling with the commercial truck-tough RAW 4x4 Heavy-Duty Suspension Kit for the Land Rover Defender 110 & 130 (1984–2016). Born from a rich pedigree of heavy commercial vehicle engineering by Powerdown, this system replaces fatigued factory components to provide up to 40mm of ground clearance — carefully calculated to keep stock radius arms and prop-shaft angles within safe operating limits — while addressing the body roll, steering play, and metal-on-metal noise common to older Defender spring towers.

Unlike modern utility bakkies, this vintage platform features heavy-duty coil springs on both front and rear live axles, maximising axle articulation and off-road traction. Whether you’re packing a Quick Pitch Quick-en-Suite Box Unit, permanent rooftop tents, or tackling corrugated bush trails, the upgraded coils and RC-LR130R Constant-Load Rear Springs stop rear-end sag dead in its tracks. Equipped with heavy-duty charged Nitro shocks with 360° deep-penetrating structural welds on all eye rings and studs, this kit completely eradicates dampening fade over hours of brutal off-road driving.

Kit Components & Part Numbers

• Front Nitro Max Shock Absorbers – Pair (M4106G) – 35–45mm bore, 60mm outer tube, 360° structural welds on all eye rings & studs
• Front Raised Coil Springs (RC-LR84F) – 0–50kg / Standard Bumper
• Front Heavy-Duty Raised Coil Springs (RC-LR84F-HD) – 50–100kg / Steel Bar & Winch — essential to prevent nose sag from heavy Australian-style bars
• Rear Nitro Max Shock Absorbers – Pair (M4107G) – matched rear damping for live rear axle
• Rear Heavy-Duty Coil Springs – Defender 110 (RC-LR110R) – 200kg constant load / Station Wagon & Hardtop
• Rear Extra Heavy-Duty Coil Springs – Defender 130 (RC-LR130R) – 400kg+ permanent RTT, drawer & Dual Cab/Chassis setups

Technical Specifications

• Total Lift: 40mm (1.5 inches) over factory ride height
• Kit Weight: ~32–38kg (all-coil configuration — lighter than leaf-sprung setups)
• Packaged Dimensions: 850mm × 450mm × 280mm
• Shock Bore: 35mm (Nitro) – 45mm (Nitro Max) | Outer Tube: 60mm steel | Construction: 360° deep-penetrating structural welds

Warranty

Industry-leading 3-Year / 60,000km Warranty — covers coil sagging, fracturing, and high-pressure oil seal blowouts under heavy cross-border overlanding conditions.

Professional Fitment Available Nationwide

Prefer to have it fitted by experts? Advanced 4x4 offers professional fitment at our fitment centres across South Africa. Simply place your order online and contact us to book your fitment appointment at the centre nearest to you. Our trained technicians will ensure your suspension kit is installed correctly for optimal performance and safety.

Selecting the Right Configuration

The Defender 110 and Defender 130 have significantly different rear unladen weights and chassis limits — please select the correct variant at checkout to ensure the correct progressive coil spacing is dispatched:

• Vehicle variant: Defender 110 (Station Wagon / Hardtop) / Defender 130 (Dual Cab Pickup / Chassis)
• Front-end weight: Standard Bumper / Steel Bar & Winch (Australian-style heavy bar)

⏳ Lead Time: Please allow 14 business days for production/sourcing if stock is not immediately available.
