Tough Dog 40mm Suspension Lift Kit – Mazda BT-50 TF (2020+) | Advanced 4x4

Tough Dog Mazda BT-50 TF (2020+) Complete 40mm Suspension Lift Kit

The Tough Dog Mazda BT-50 (2020+) 40mm Suspension Kit is specifically engineered for the latest TF-generation BT-50. Sharing its platform with the Isuzu D-Max, the BT-50 benefits directly from Tough Dog’s extensive research and development on this chassis — resulting in a kit that corrects the factory “nose-down” rake and delivers a significant upgrade in handling, stability, and load-carrying performance, especially when equipped with a canopy, bullbar, or towing a trailer.

Equipped with 41mm Bore Foam Cell Shock technology, this system provides superior heat dissipation to keep your ride comfortable, controlled, and fade-free through long South African overland stretches and corrugated dirt roads.

---

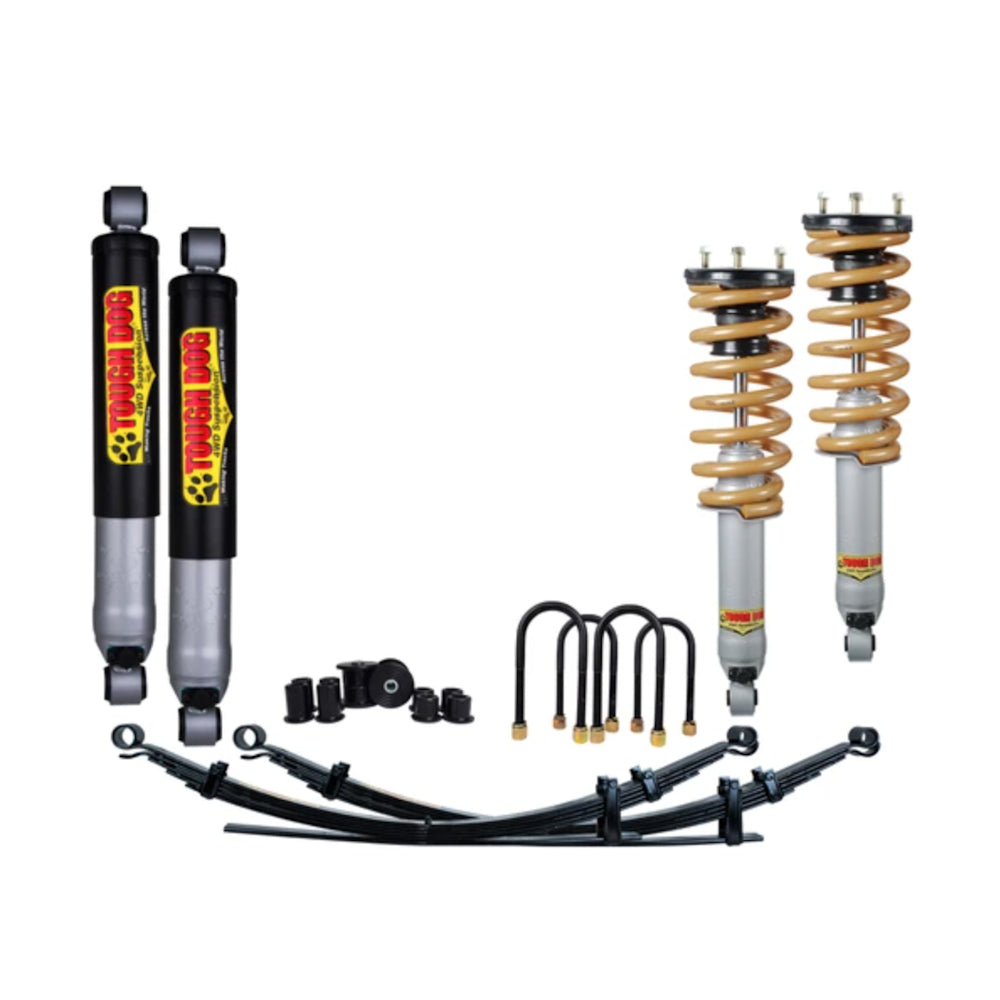

🔧 Kit Components & Technical Specs

• Lift Height: Approximately 40mm
• Front Shocks: 2x 41mm Bore Foam Cell Shock Absorbers (optional: 9-stage adjustable units)
• Rear Shocks: 2x 41mm Bore Foam Cell Shock Absorbers (optional: 9-stage adjustable units)
• Front Springs: High-tensile Coil Springs — available for No Bar, Bullbar, or Winch/Dual Battery setups
• Rear Springs: Multi-leaf Spring Packs — Comfort, 300kg Constant, or 500kg Constant Load options
• High-tensile Steel U-Bolts
• Polyurethane Shackle Bush Kit
• Driveline Spacer Kit — ensures smooth, vibration-free power delivery post-lift
• Approx. Shipping Weight: 85kg – 100kg (dependent on leaf spring selection)
• Package Dimensions (L×W×H): 1.2m × 0.5m × 0.4m
• SKU: TD-BT50-20-KT (configuration specific)

---

🚗 Why Upgrade Your 2020+ BT-50?

The 2020+ BT-50 is a sophisticated, refined bakkie — but like all factory setups, its suspension is tuned for unladen comfort rather than the demands of heavy accessory loads, towing, or serious overlanding. The Tough Dog kit delivers a Second Stage Manufacturer (SSM) level of performance, giving your BT-50 the backbone it needs for heavy-duty work or play without sacrificing the refined, comfortable feel of the Mazda interior.

• ✅ 40mm lift — corrects factory nose-down rake and adds meaningful ground clearance
• ✅ Prevents bottoming out — heavy-duty spring rates handle canopies, bullbars, and full touring loads
• ✅ Improved towing stability — load-rated rear leaf spring options keep the rear level under trailer loads
• ✅ Foam Cell shock technology — superior heat dissipation for fade-free performance on extended drives
• ✅ Driveline Spacer Kit included — corrects driveline angles post-lift for smooth, vibration-free power delivery
• ✅ D-Max platform engineering — Tough Dog’s extensive D-Max/BT-50 chassis research ensures precise fitment and calibration
• ✅ Optional 9-stage adjustable shocks — tune your ride for any terrain or load condition

Note: A Tailshaft Spacer Kit may be required on some BT-50 TF models to prevent driveline shudder after lift. Contact us to confirm whether this applies to your specific vehicle configuration.

---

🛡️ Warranty & Fitment Requirements

This kit includes a 4-Year / Unlimited Kilometre Recreational Warranty — activated only upon professional installation.

• Approved Fitment: Advanced 4x4 Branch in Strand, any authorised Tough Dog fitment centre, or an RMI-accredited workshop
• Warranty Conditions: Must be fitted by a qualified professional facility. Fitment invoice must include the vehicle’s odometer reading at time of installation
• Price Excludes: Fitment and wheel alignment. Contact us to book your installation at our Strand branch

---

⭐ Why Choose Tough Dog?

Tough Dog is a recognised Second Stage Manufacturer (SSM), with components certified to handle increased Gross Vehicle Mass (GVM) without compromising roadworthiness or legal compliance. Their BT-50 TF kit leverages the same platform research developed for the D-Max — one of the most thoroughly tested suspension applications in the Tough Dog range.

At Advanced 4x4, we stock the full Tough Dog BT-50 range and can advise on the correct spring load rating, optional 9-stage adjustable shocks, tailshaft spacer requirements, and fitment bookings at our Strand RMI workshop.

⏳ Lead Time: Please allow 14 business days for production/sourcing if stock is not immediately available.
