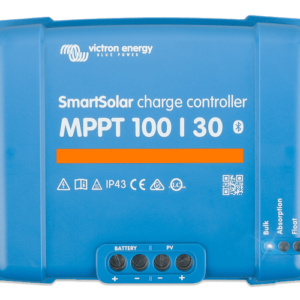

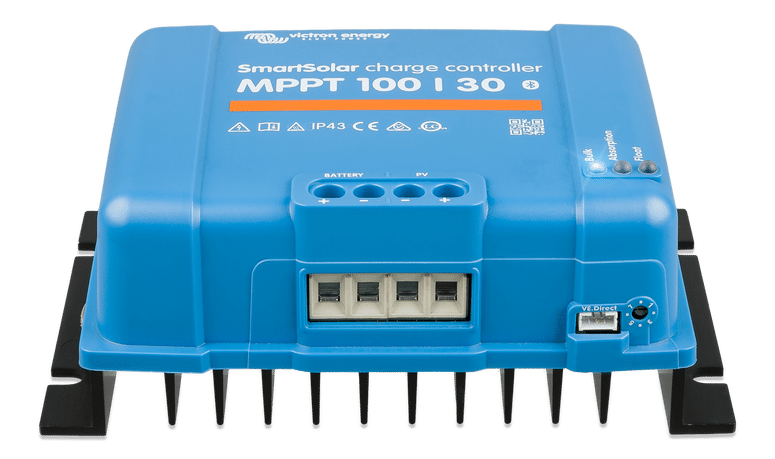

Victron Blue Solar MPPT 100/30 Solar Charge Controller

Victron Blue Solar MPPT 100/30 Solar Charge Controller

The Victron Blue Solar MPPT 100/30 is a professional solar charge controller using ultrafast Maximum Power Point Tracking (MPPT) technology to harvest every watt from your solar panels and store it efficiently in your batteries. With 98% conversion efficiency and advanced partial shading detection, it maximises energy harvest even in variable light conditions — ideal for off-grid, overlanding, marine, and backup power systems.

⚠️ Please Note: The Blue Solar MPPT does not have built-in Bluetooth. If you require Bluetooth, please purchase the Smart Solar MPPT version, or add a Bluetooth dongle (sold separately) to this unit.

Key Features:

• Ultrafast MPPT Technology: Continuously tracks and locks onto the maximum power point of your solar panels — harvesting more energy than PWM controllers, especially in partial shading conditions.
• 98% Conversion Efficiency: Outstanding efficiency minimises energy loss between your panels and batteries.
• 12/24V Auto Select: Automatically detects and adapts to 12V or 24V battery systems.
• Advanced Partial Shading Detection: Identifies and compensates for partial shading to maintain maximum harvest even when panels are partially obscured.
• Multi-Stage Adaptive Charge Algorithm: Flexible charge algorithm optimises battery conditioning and longevity for lead-acid and lithium batteries.
• VE.Direct Port: Connect to a GX device or Global Link 520 for remote monitoring via the Victron VRM portal — free to use.
• Internal Temperature Sensor: Automatically compensates charge voltage based on battery temperature.
• Extensive Electronic Protection: Protected against reverse polarity, over temperature, and short circuit.

Specifications:

• Brand: Victron Energy
• Model: Blue Solar MPPT 100/30
• Battery Voltage: 12/24V Auto Select
• Rated Charge Current: 30A
• Nominal PV Power (12V): 440W
• Nominal PV Power (24V): 880W
• Max PV Open Circuit Voltage: 100V
• Max PV Short Circuit Current: 35A
• Maximum Efficiency: 98%
• Self-Consumption: 30mA (12V) | 20mA (24V)
• Charge Algorithm: Multi-stage adaptive
• Data Port: VE.Direct
• Power Terminals: 16mm² / AWG6
• Bluetooth: No (dongle sold separately)
• Dimensions: 130mm (H) x 186mm (W) x 70mm (D)
• Weight: 1.3kg

What's in the Box:

• 1x Victron Blue Solar MPPT 100/30
• 1x User Guide

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
