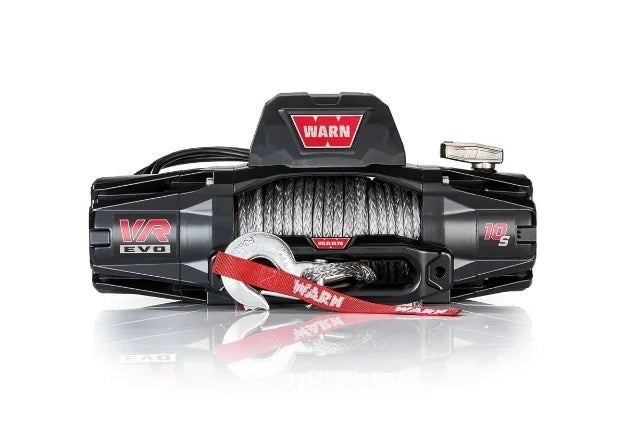

WARN VR EVO 10-S 10,000lb (4,536kg) Synthetic Rope Winch

WARN VR EVO 10-S 10,000lb (4,536kg) 12V Synthetic Rope Winch — Series-Wound, IP68, Albright Contactor, Lifetime Warranty

The WARN VR EVO 10-S delivers the ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. With a powerful series-wound motor, fast line speed, lower amp draw, and IP68 waterproof construction, the VR EVO is the hardest-working standard-duty winch WARN has ever made — this is the synthetic rope variant for operators who want lightweight, safe-to-handle rope with maximum corrosion resistance.

What’s Included:

• 90ft x 3/8" Synthetic Rope
• Hawse Fairlead
• 2-in-1 Wired & Wireless Remote (11.5ft / 3.5m corded lead)
• Mounting Hardware

Key Features:

• 10,000lb (4,536kg) Pulling Capacity: Ideal for 1/2-ton pickups, Jeeps, and larger SUVs — serious recovery power without overkill.
• Series-Wound Motor: Powerful motor delivers faster line speed under load with lower amp draw — max 358A at 10,000lb.
• 3-Stage Planetary Gear Train (218:1): Smooth, reliable, and durable — engineered for maximum pulling performance.
• IP68 Waterproof Construction: Fully sealed to IP68 standard — submersible protection against water, mud, and dust.
• Albright® Contactor: High-performance, ultra-reliable contactor inside a relocatable control pack — ideal for low-profile installations.
• One-Piece Cast Aluminium Tie-Plate: Added strength and durability for the most demanding recovery loads.
• 90ft Synthetic Rope: 3/8" synthetic rope — lightweight, safe to handle, and corrosion-resistant.
• 2-in-1 Wired & Wireless Remote: Corded remote with 11.5ft lead — operate from inside or outside the vehicle.
• Spring Brake + Free Spooling: Reliable load holding and fast rope deployment in the field.
• Lifetime Warranty (Mechanical) / 7-Year Warranty (Electrical): WARN’s best-in-class warranty coverage.

Specifications:

• Pulling Capacity: 10,000lb (4,536kg)
• Voltage: 12V DC
• Motor: Series Wound
• Gear Train: 3-Stage Planetary (218:1)
• Line: 90ft x 3/8" Synthetic Rope
• Fairlead: Hawse
• Contactor: Albright® (relocatable)
• Remote: 2-in-1 Wired & Wireless (11.5ft corded lead)
• Max Line Speed: 5.2 ft/min at 10,000lb
• Max Amp Draw: 358A at 10,000lb
• Mounting Pattern: 10" x 4.5" (4-hole)
• Brake: Spring
• Drum: Steel
• Waterproof Rating: IP68
• Weight: 25.04kg
• Origin: USA
• SKU: 103253
• Warranty: Lifetime (mechanical) / 7 years (electrical)

⚠️ Please Note: This winch requires a compatible bumper or mounting plate for proper vehicle fitment.

The hardest-working standard-duty winch WARN has ever made — perfectly sized for 1/2-ton pickups, Jeeps, and larger SUVs.
