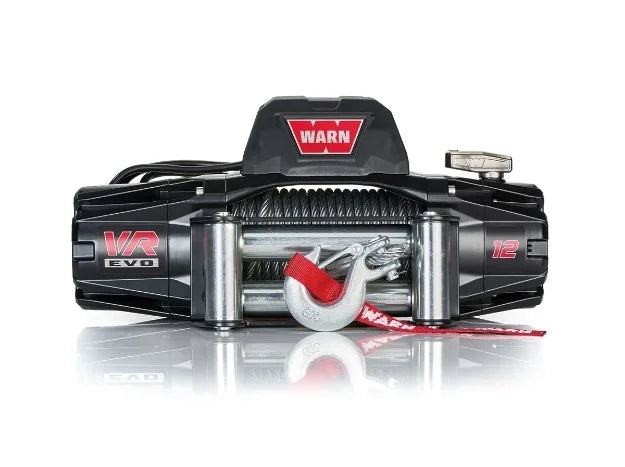

WARN VR EVO 12 000 lb (5443KG) STEEL CABLE WINCH
WARN VR EVO 12 000 lb (5443KG) STEEL CABLE WINCH
SKU:103254
Couldn't load pickup availability
Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, and a corded remote with 11.5' (3.5m) lead. With its fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• 2-in-1 wired and wireless remote
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications:
| Type | Electric |
| Recommended Use | Vehicle Recovery |
| Mounting Location | Vehicle Mounted |
| Voltage | 12 Volt DC |
| Electrical Control Type | Albright Contactor |
| Motor Type | Series Wound |
| Drive Gear Type | 3-Stage Planetary |
| Gear Reduction Ratio | 234:1 |
| Free Spooling | Yes |
| Brake Type | Spring |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 85 |
| Line Material | Steel |
| Fairlead Type | Roller |
| Remote Type | Corded remote with 11.5' (3.5m) lead |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | Yes |
| Color | Black |
| Drum Material | Steel |
| Max Line Pull/ Line Speed | 12,000 pounds / 4.0 feet per minute |
| Max Amp Draw/ Line Pull | 396 Amps / 12,000 pounds |
