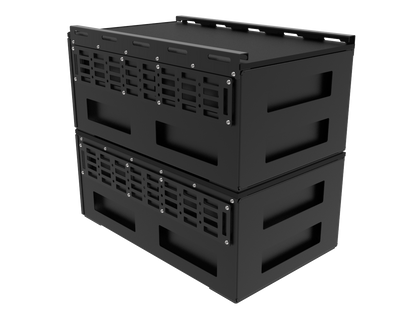

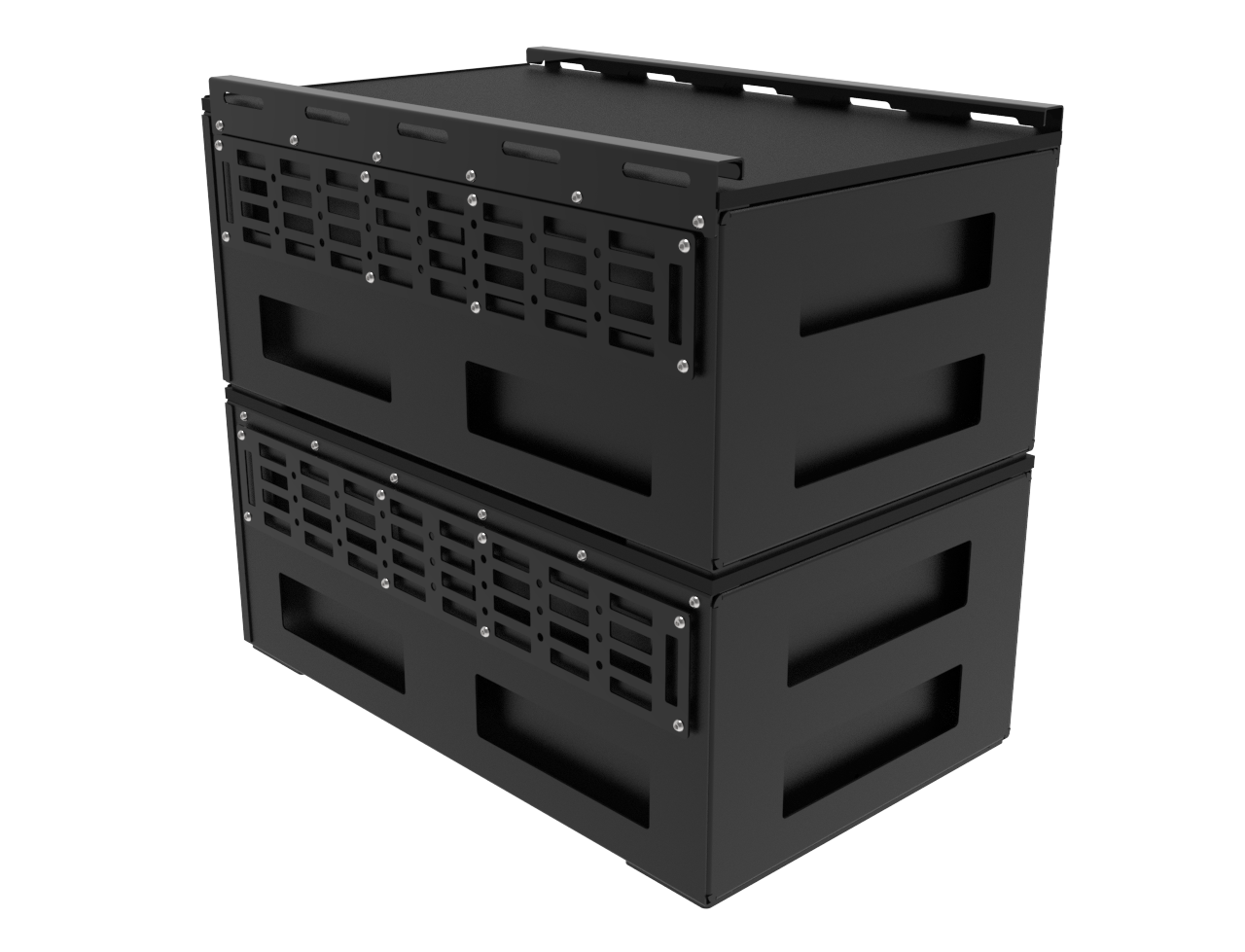

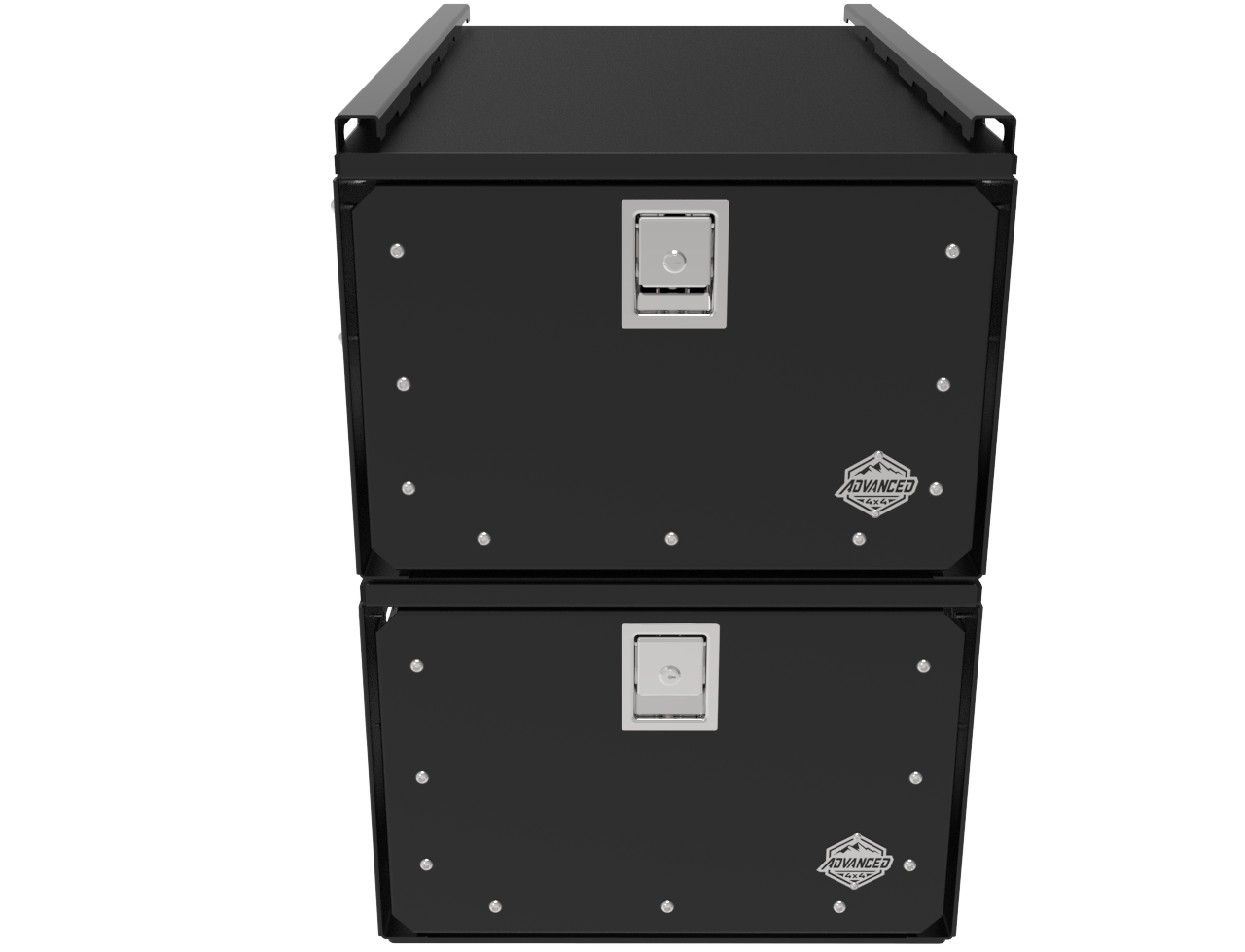

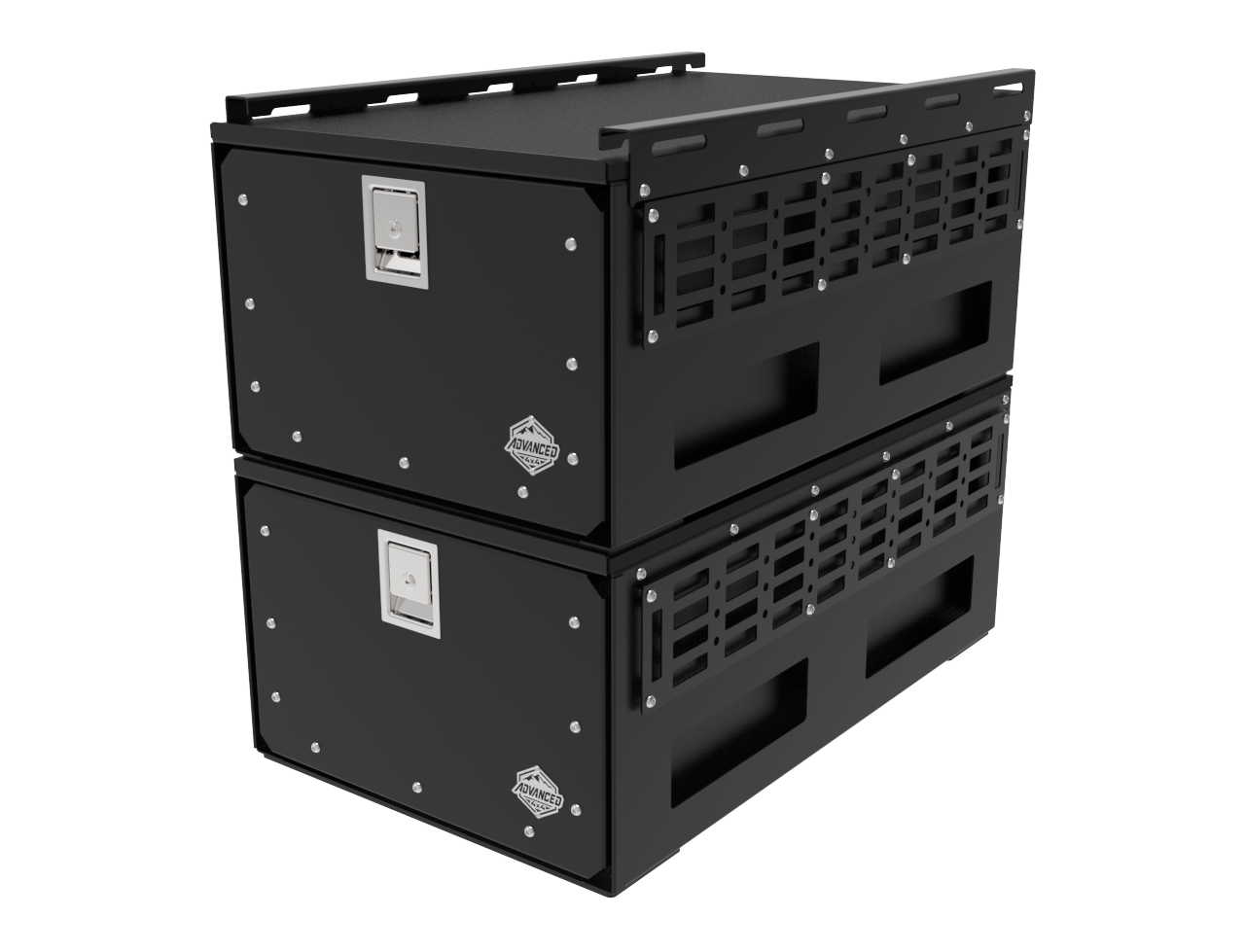

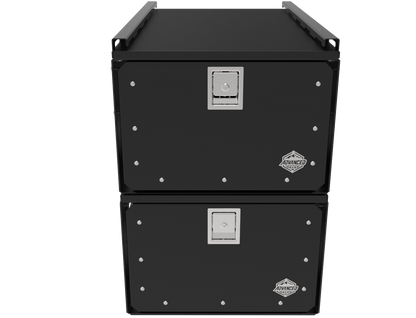

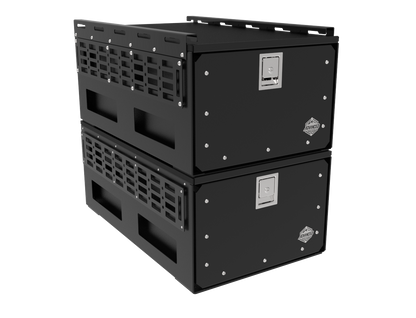

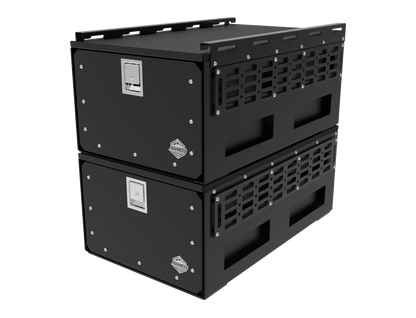

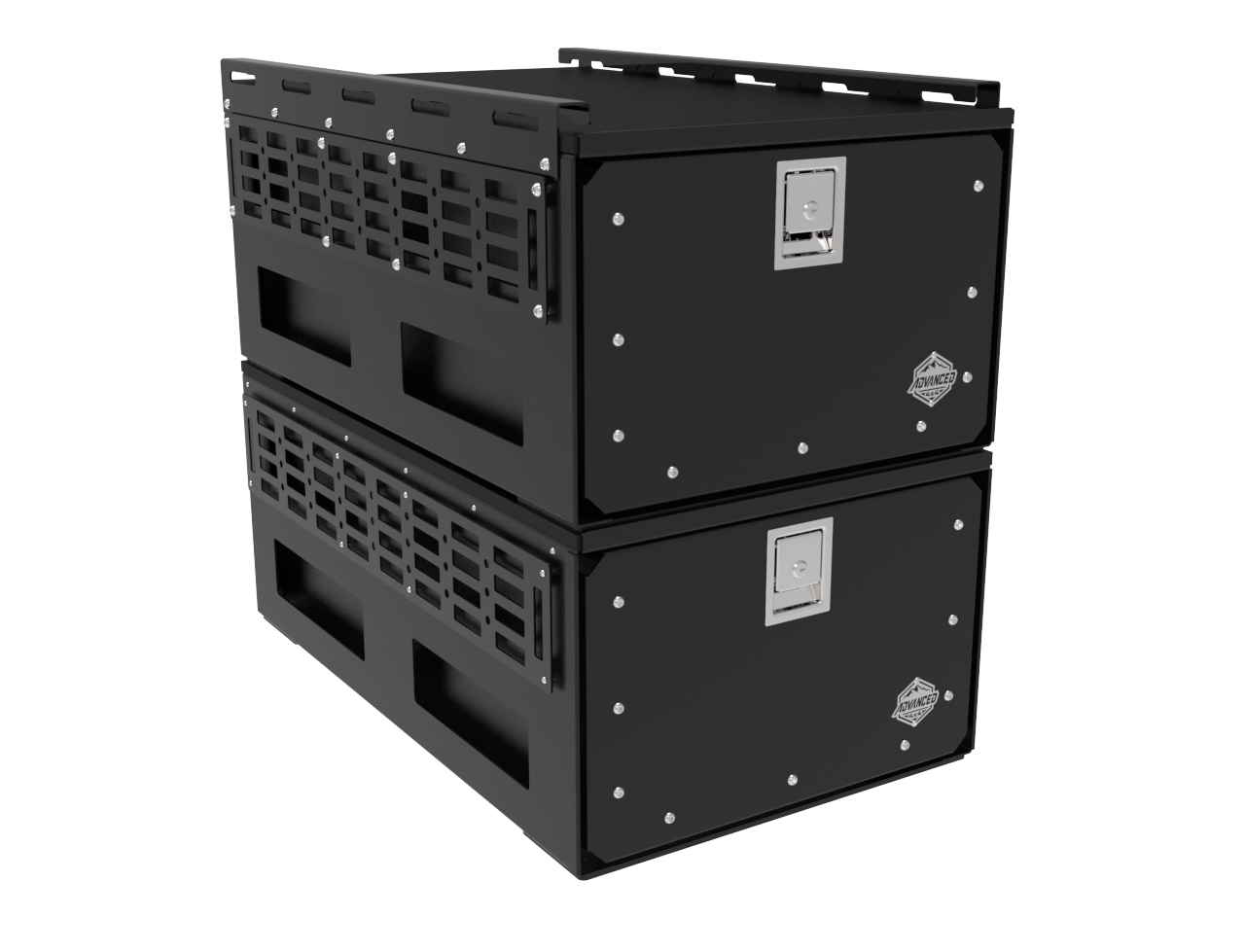

Suzuki Jimny Gen 4 Double Drawer System | 2mm Aluminium | 90kg Runners | 3-Door Only

Advanced 4x4 Suzuki Jimny Gen 4 Double Drawer System — Dual-Level Secure Storage. 90kg Runners. Lockable. 3-Door Only.

The Advanced 4x4 Suzuki Jimny Gen 4 Double Drawer System takes your Jimny's boot organisation to the next level — two full-depth drawers, stacked and accessible, giving you dedicated storage for recovery gear, camp kitchen equipment, tools, and valuables all in one clean, secure unit. Built from 2mm aluminium with heavy-duty 90kg runners and lockable latches on each drawer, it delivers serious dual-level storage capability while keeping weight to a minimum in a vehicle where every kilogram counts.

Designed specifically for the Suzuki Jimny Gen 4 3-Door using advanced 3D scanning technology, every dimension is matched to the factory boot geometry for a precise, rattle-free fit that installs cleanly without modification.

🔩 Key Features

• Dual Drawer Configuration: Two independent full-depth drawers — top and bottom — giving you organised, dedicated storage zones for different gear categories.
• Heavy-Duty 90kg Runners per Drawer: Industrial-grade 90kg rated runners on each drawer deliver smooth, reliable full-extension operation under full load — no sagging, no binding, no failure on rough terrain.
• Lockable Latches: Each drawer features a lockable latch to keep your gear protected from theft and prevent drawers from opening on corrugated roads and off-camber terrain.
• 2mm Aluminium Construction: Lightweight yet rigid 2mm aluminium build — serious dual-level storage capacity without the weight penalty of steel alternatives.
• Precision-Fit Design: Engineered to the exact interior dimensions of the Jimny Gen 4 3-Door boot — no trimming, no modification, clean factory-integrated look.
• Maximised Internal Storage: Both drawers share identical internal dimensions, maximising usable space across both levels.
• Rattle-Free Construction: Precision-built to eliminate the rattles and squeaks that plague generic storage solutions on corrugated dirt roads.

📐 Specifications

• Brand: Advanced 4x4
• Vehicle Compatibility: Suzuki Jimny Gen 4 3-Door only (2018–Present)
• Material: 2mm aluminium
• Drawer Runner Rating: 90kg per drawer
• Latch Type: Lockable latches (one per drawer)
• External Dimensions: L 704mm × W 430mm × H 638mm
• Internal Dimensions (per drawer): L 680mm × W 381mm × H 247mm
• Weight (Empty): 21 kg
• Drawer Configuration: Double drawer (top + bottom)
• Kit Contents: Double drawer unit + mounting hardware
• Mounting: Requires wood deck pre-installed in vehicle — not supplied

Two drawers. Everything in its place. Nothing rattling around. Fit a proper double drawer system and run a cleaner, more capable Jimny — built light, locked tight, trail-ready.

🔧 Fitment & Installation

Compatible with: Suzuki Jimny Gen 4 3-Door only (2018–Present)

⚠️ Important Notes:

• This drawer system is designed for the Suzuki Jimny Gen 4 3-Door only. Not compatible with the 5-Door model.
• A wood deck must be installed in your Jimny prior to fitting this drawer system. The wood deck is not supplied by Advanced 4x4 and must be sourced and installed separately before this product can be mounted.

Professional fitment available at Advanced 4x4 or any of our approved 4x4 fitment centres nationwide.

⏳ Lead Time: Please allow 14 business days for production if stock is not immediately available.
