Flex Adventures FLEX 12G Bluetooth Switch Panel | 12-Gang RGB Accessory Controller

The Flagship. Built for Complex Builds.

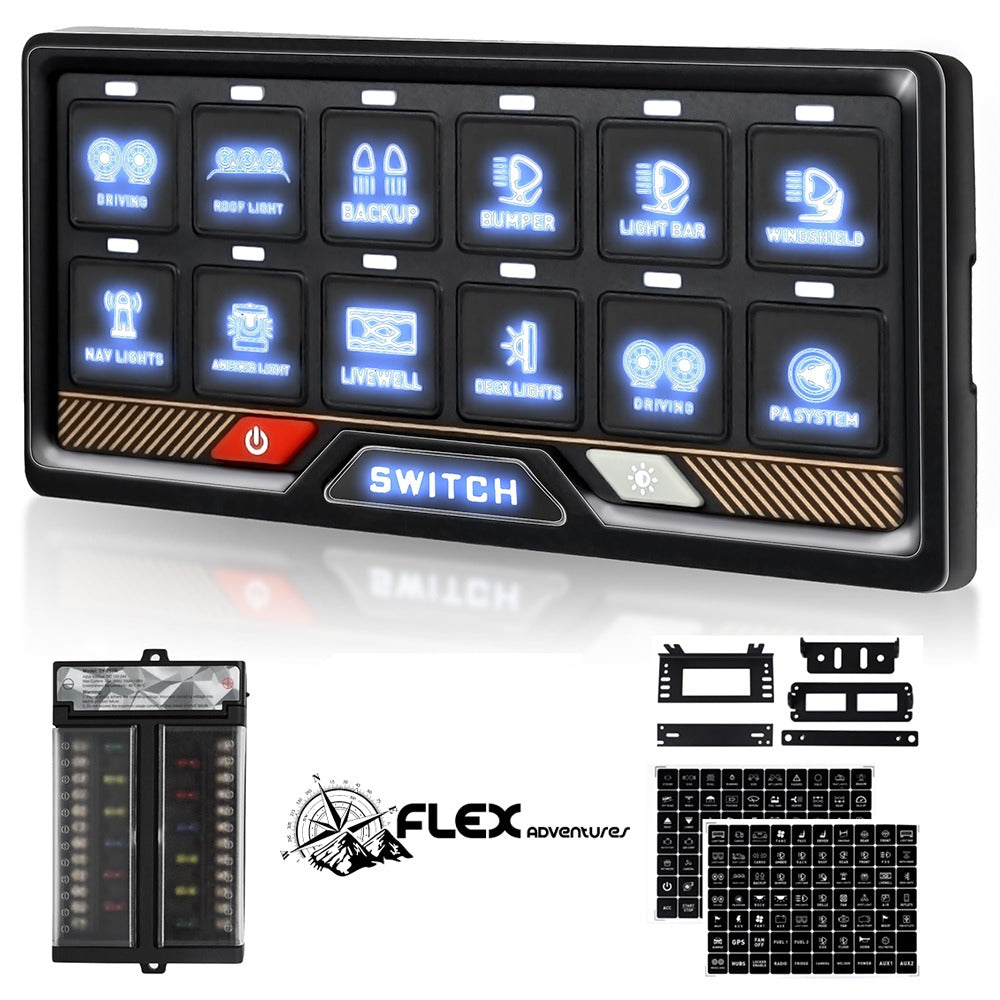

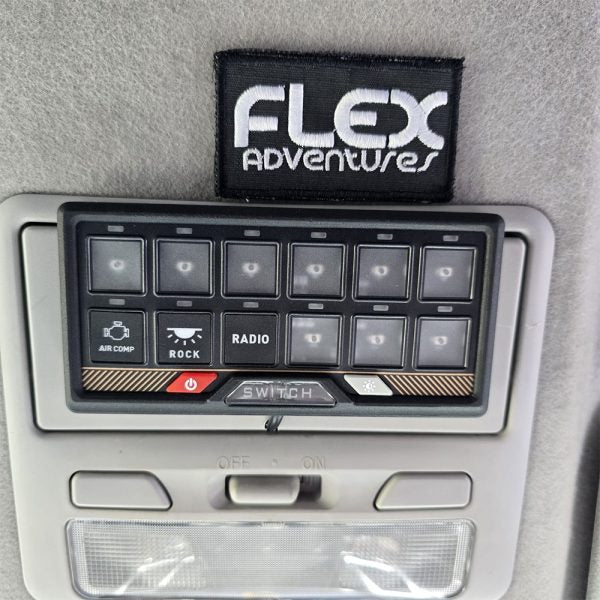

The Flex Adventures FLEX 12G Accessory Panel is the heavy-duty flagship of the Flex control range — the "Big Brother" to the 8G — designed to centralise up to 12 independent electrical circuits into one clean, intelligent interface. Built for serious 4x4s, overlanders, expedition rigs, and boats that demand more than 8 triggers, the FLEX 12G delivers unmatched control, protection, and customisation.

Control everything wirelessly via a dedicated Bluetooth smartphone app with up to 16m range — trigger lights, pumps, or accessories from outside the vehicle without touching the panel. The system even features Power Memory, remembering your last colour and brightness settings every time you power on.

Housed in high-grade aluminium alloy with a half-opening transparent control box cover for easy wiring access, and rated IP67 (switch panel) / IP65 (control box), this panel is engineered to perform in the harshest conditions from –40°C to +85°C.

🔑 Key Features

• 12-Gang Control — Centralise up to 12 independent accessories in one interface
• Bluetooth App Control — Full wireless control via smartphone app, up to 16m range — even from outside the vehicle
• Power Memory — Remembers your last colour and brightness settings on power-up
• Solid-State Relay Protection — Integrated 80A circuit breaker with overvoltage, overcurrent, and thermal spike protection

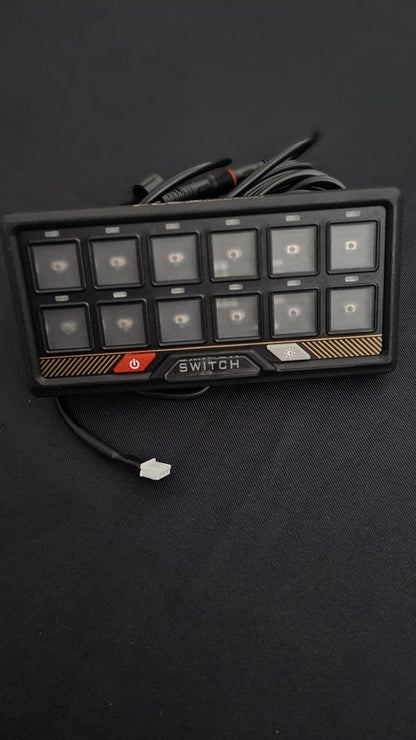

• RGB Backlit Switches — 8 selectable colours (Red, Dark Blue, Light Blue, Green, Pink, Yellow, White) and 5 brightness levels
• Three Switch Modes — Steady, Momentary, and Strobe — programmable per switch via panel or app
• 80 Amp Total Capacity — 960W at 12V / 1920W at 24V
• Dual Voltage — Compatible with 12V and 24V DC systems
• IP67 Panel / IP65 Control Box — Dust-tight and water-resistant

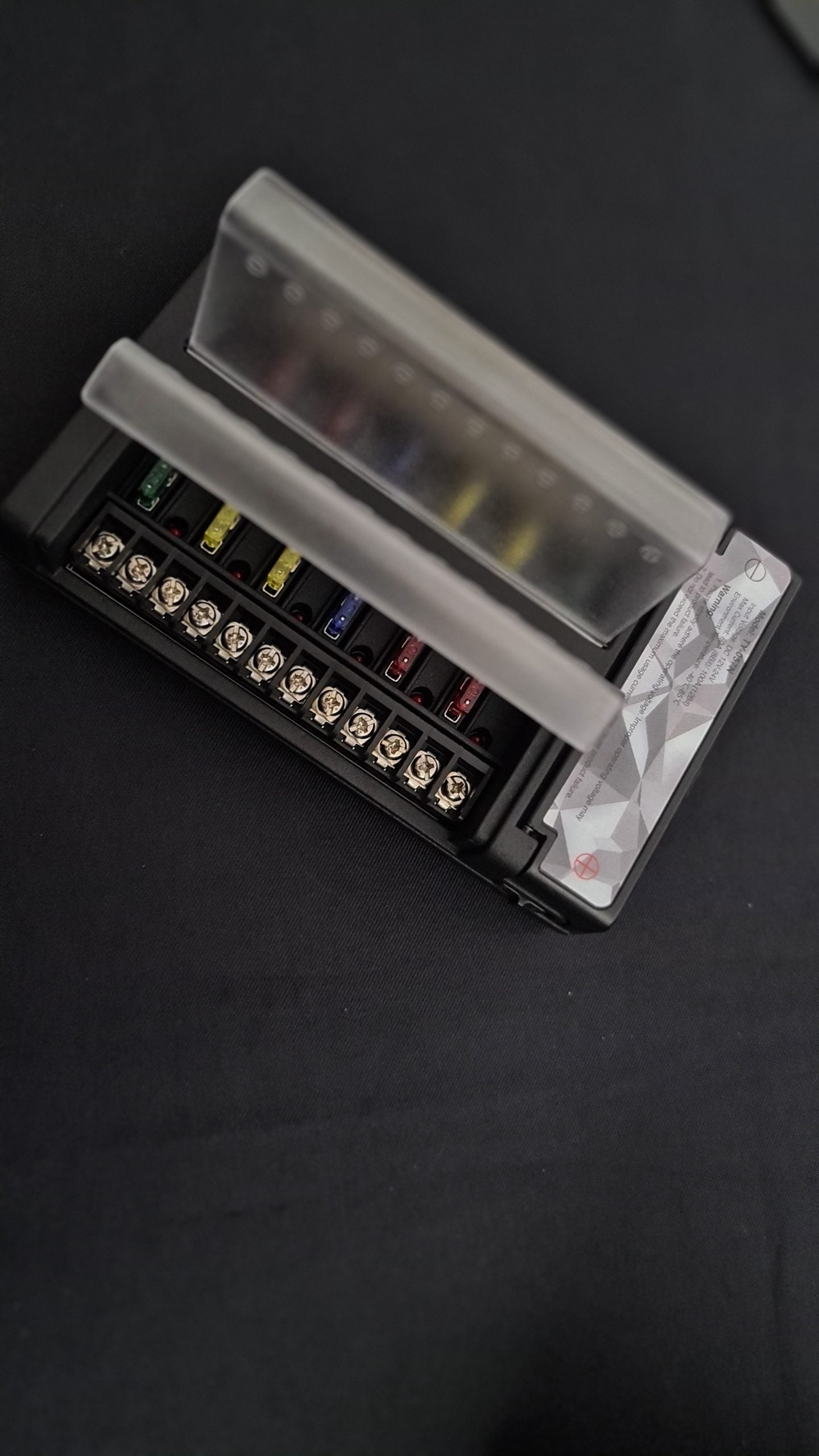

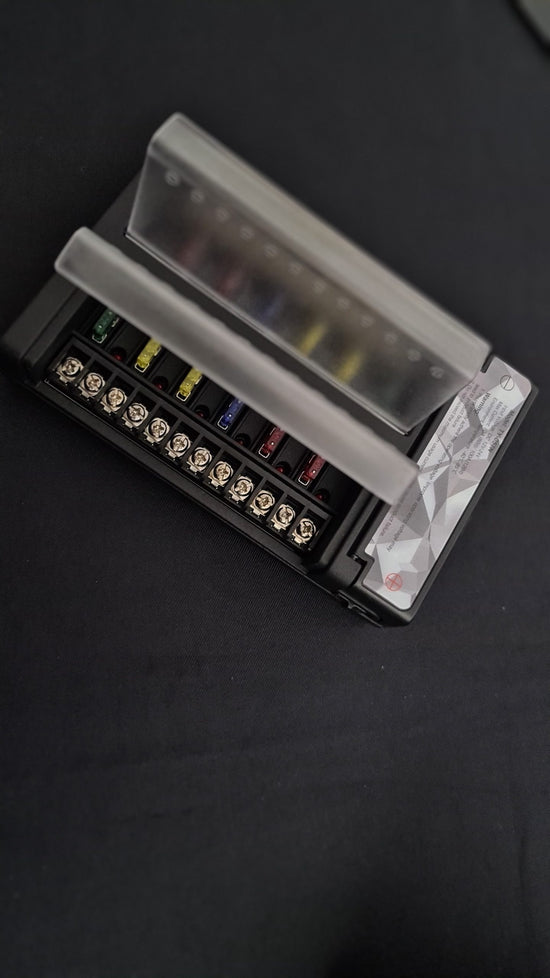

• High-Grade Aluminium Alloy Housing — Half-opening transparent cover for easy wiring access

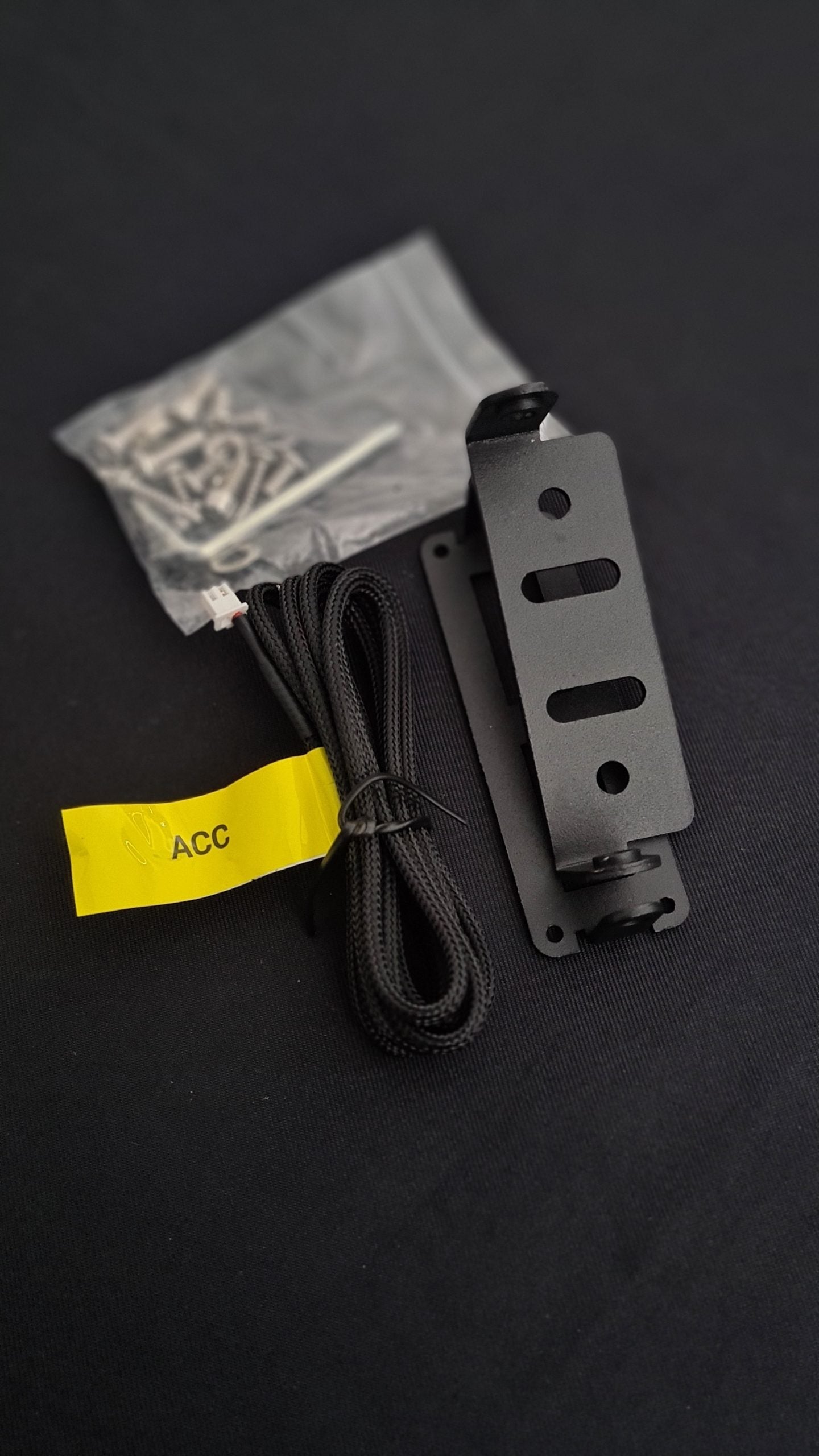

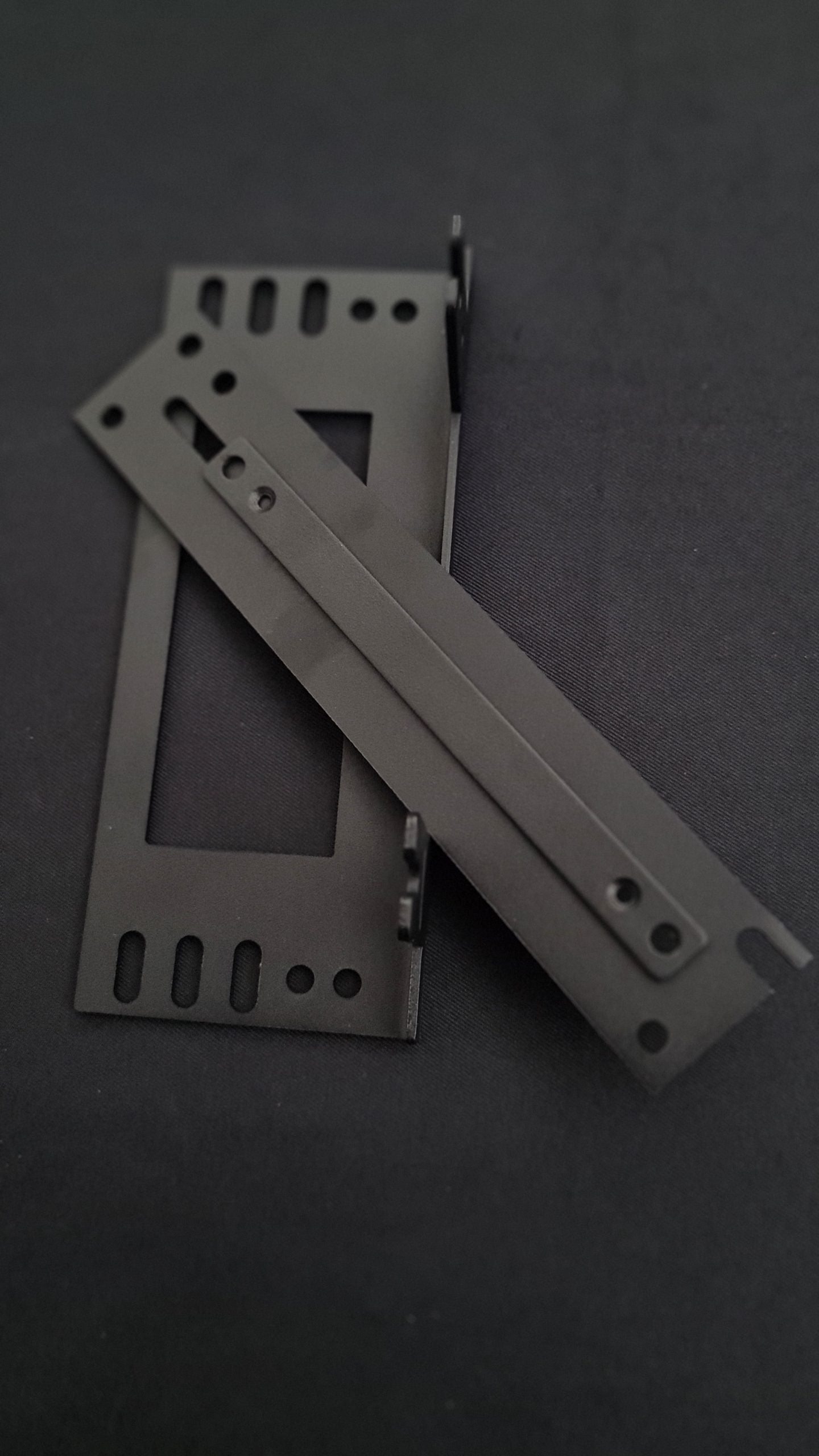

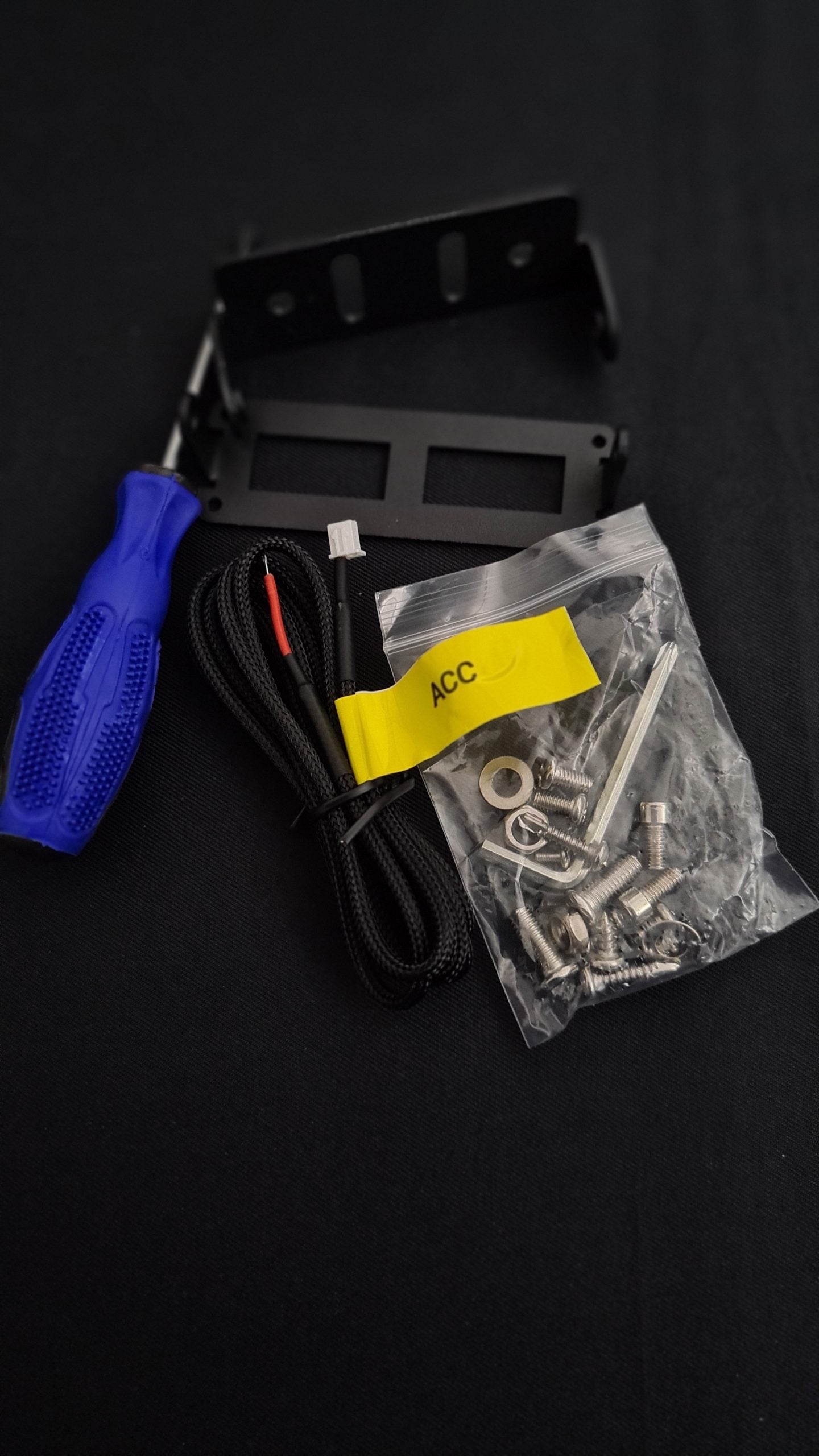

• Surface Mount Design — All mounting brackets included

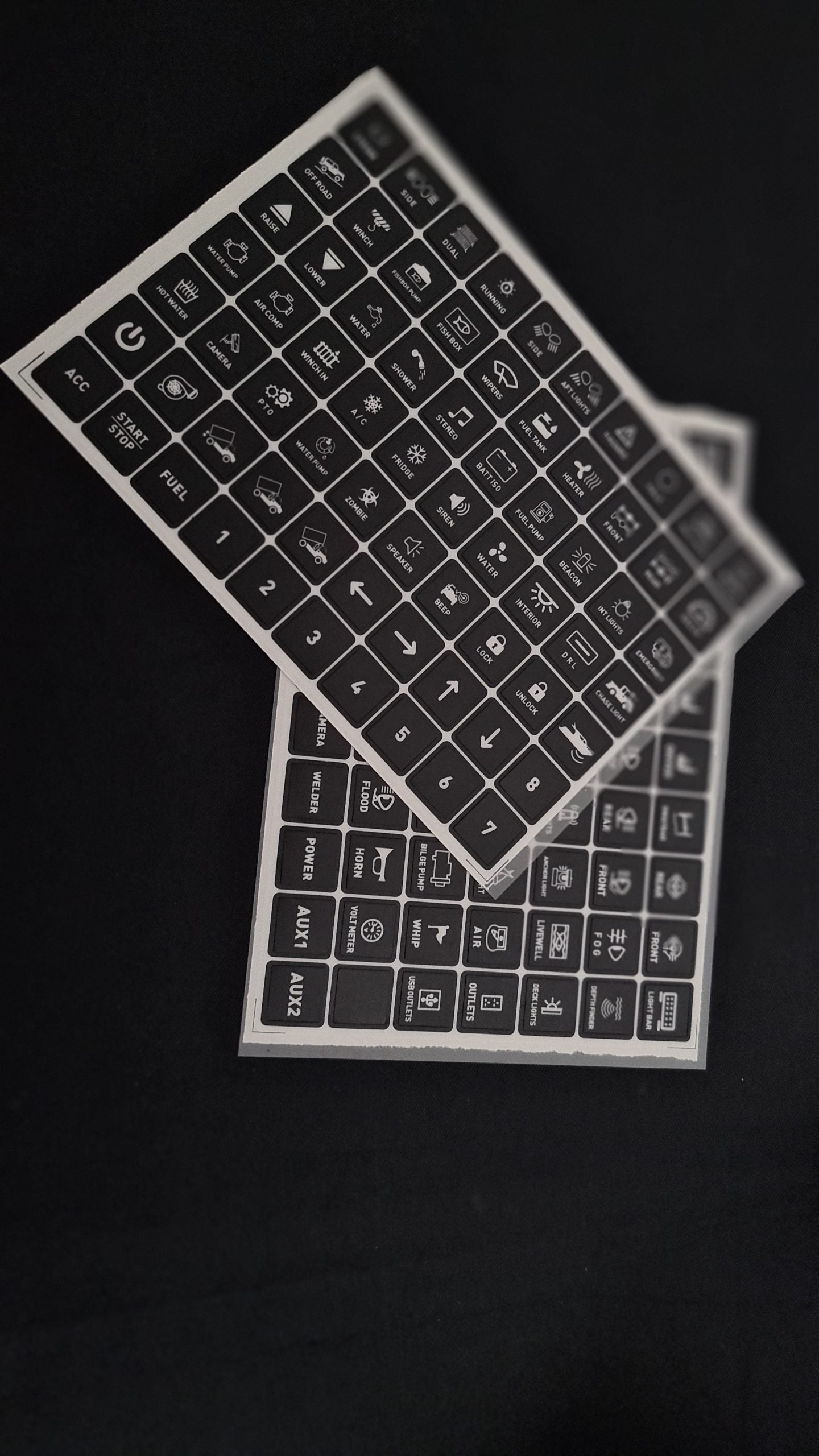

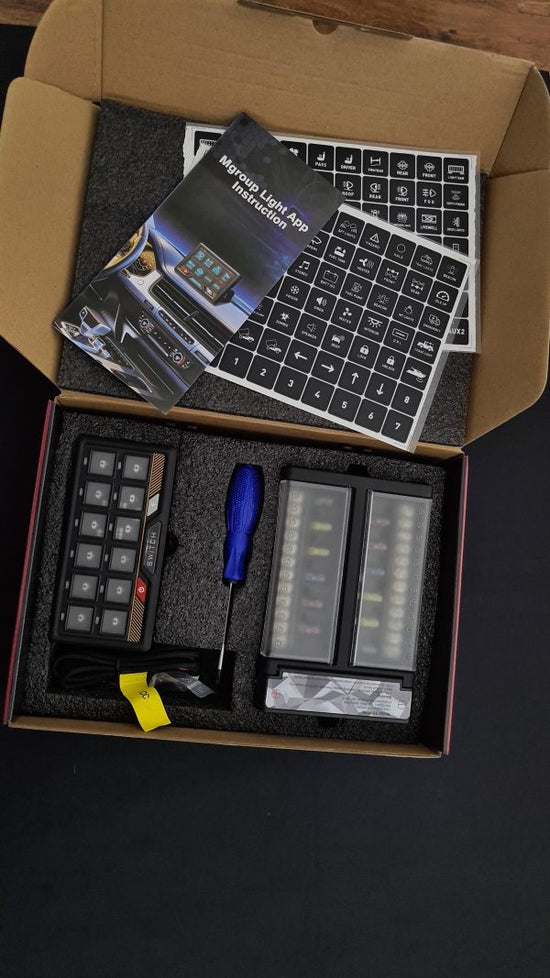

• 140 Custom Labelling Stickers — Identify every switch for your exact build
• Operating Temperature — –40°C to +85°C

📐 Specifications

• SKU: FSP12GBT

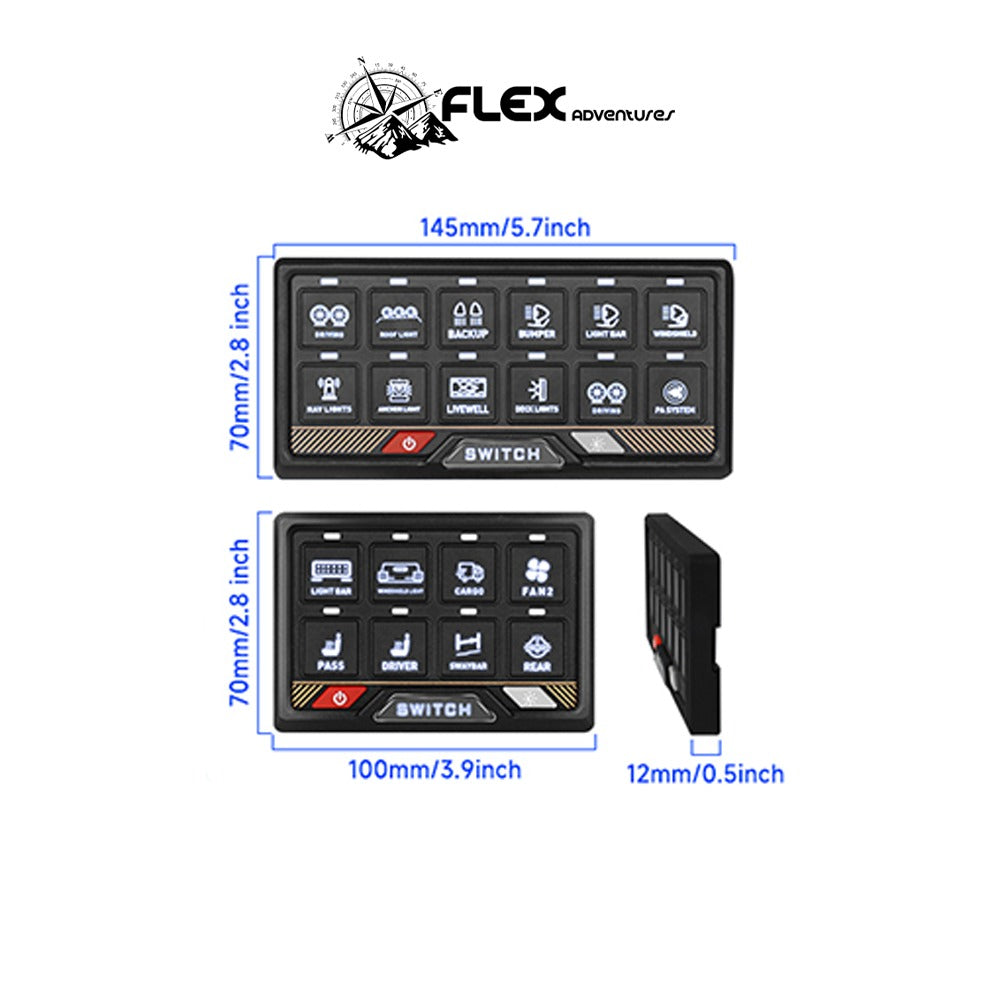

• Dimensions (L×W×H): 300mm × 200mm × 85mm (11.81" × 7.87" × 3.35")
• Weight: 2.0 kg
• Current Rating: 80 Amps
• Operating Voltage: 12V / 24V DC
• Power Rating: 960W @ 12V | 1920W @ 24V
• Waterproof Rating: IP67 (switch panel) / IP65 (control box)
• Material: High-Grade Aluminium Alloy
• Mounting Type: Surface Mount
• Switch Modes: Steady, Momentary, Strobe
• RGB Colours: 8 colours, 5 brightness levels
• Bluetooth Range: Up to 16 metres
• Operating Temperature: –40°C to +85°C
• Specification Met: CE

🚗 Universal Fitment

The FLEX 12G is a universal fit panel compatible with any 12V or 24V vehicle — bakkies, SUVs, trucks, overlanding rigs, caravans, and boats. Professional fitment is available at Advanced 4x4 or any of our authorised fitment centres nationwide.

⏳ Lead Time

Please allow 14 business days for production/sourcing if stock is not immediately available at the supplier.

Flex Adventures products are trusted by South African overlanders and off-road enthusiasts for their quality, reliability, and innovation. The FLEX 12G is the flagship — built for those who demand the best.
