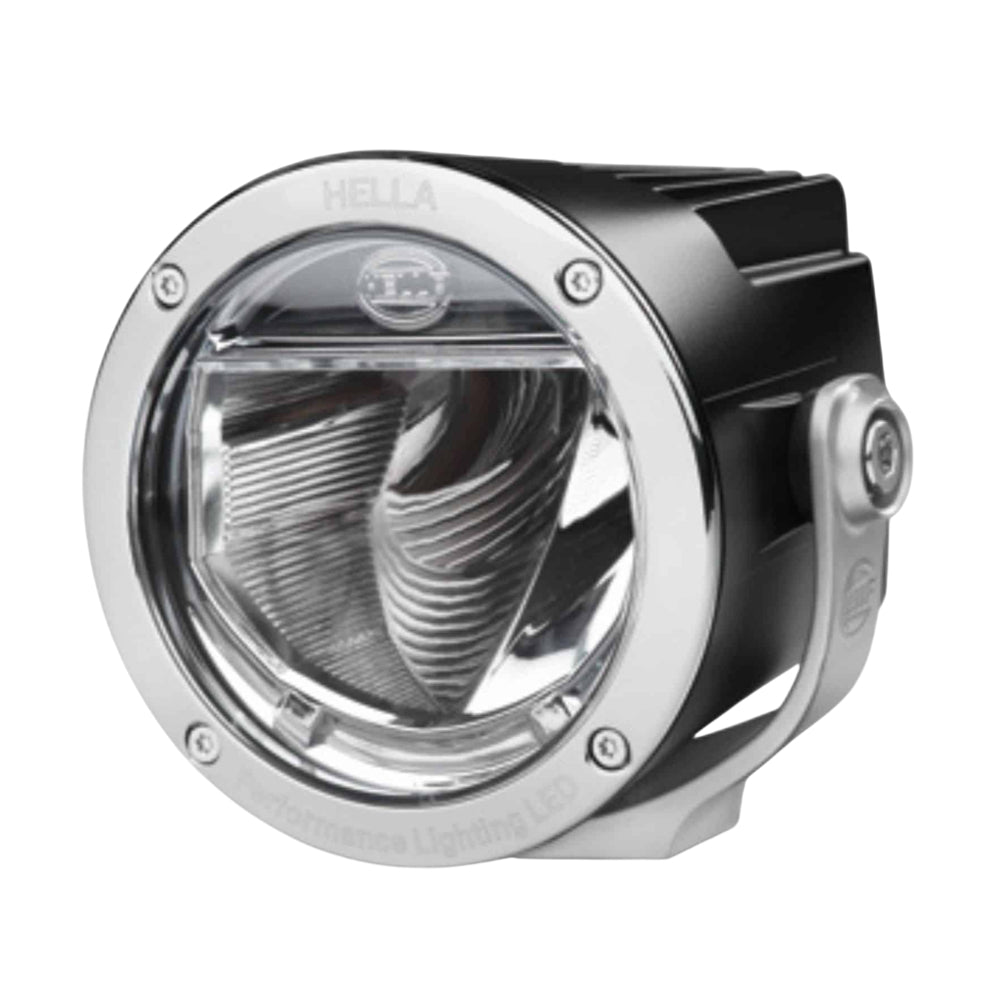

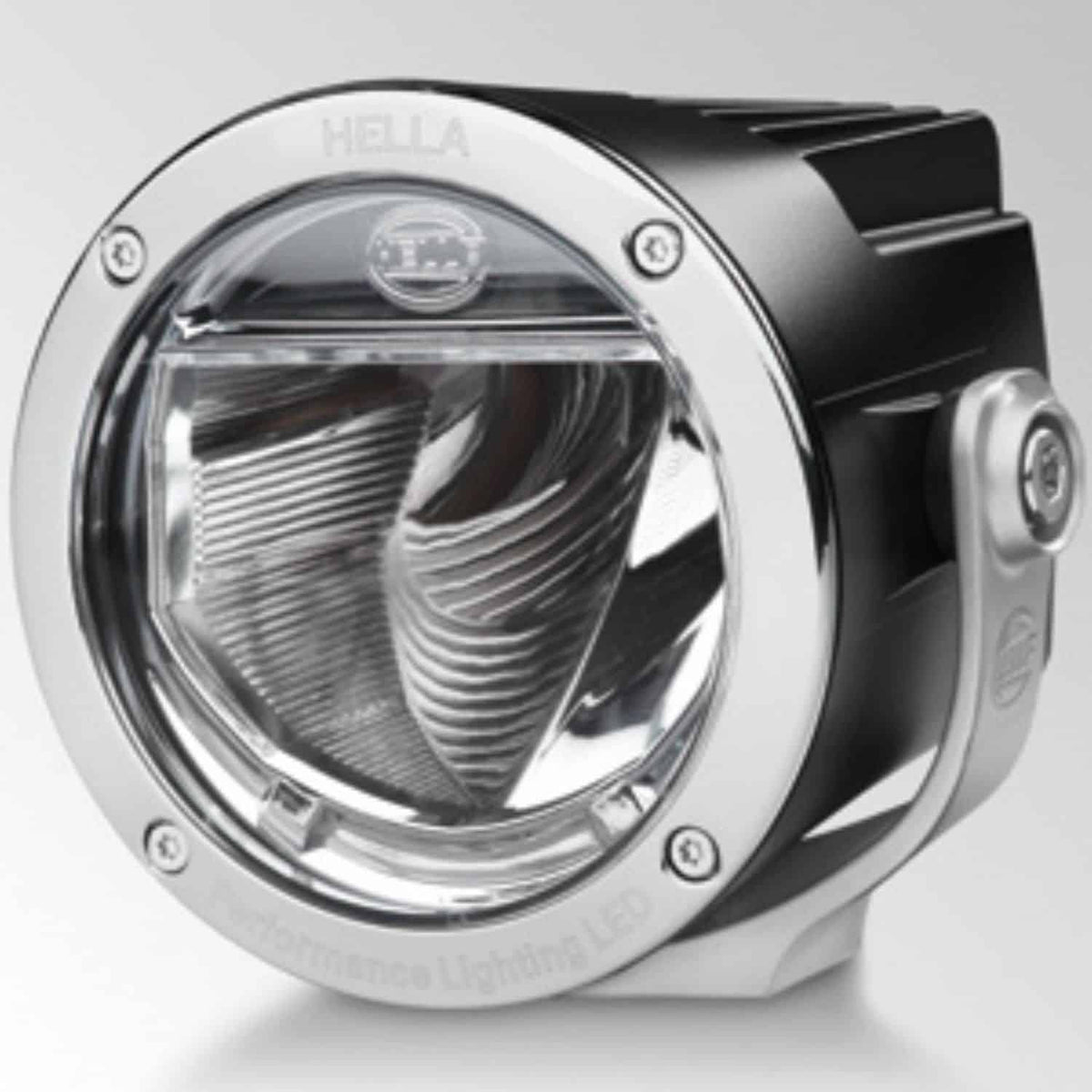

Hella Luminator X LED Auxiliary Driving Light (Single)

Hella Luminator X LED Auxiliary Driving Light — ~1,000 Lumens | 420m | ECE Approved | Sold Individually

The Hella Luminator X LED is a high-performance, compact auxiliary driving light engineered for serious off-road and long-range driving applications. With ~1,000 effective lumens, a 420m beam distance at 1 Lux, computer-calculated double-reflector technology, and passive cooling fins — it delivers complete, homogenous roadway illumination with no fan required. ECE approved and briefly immersible for true off-road capability. Sold as a single lamp.

Key Features:

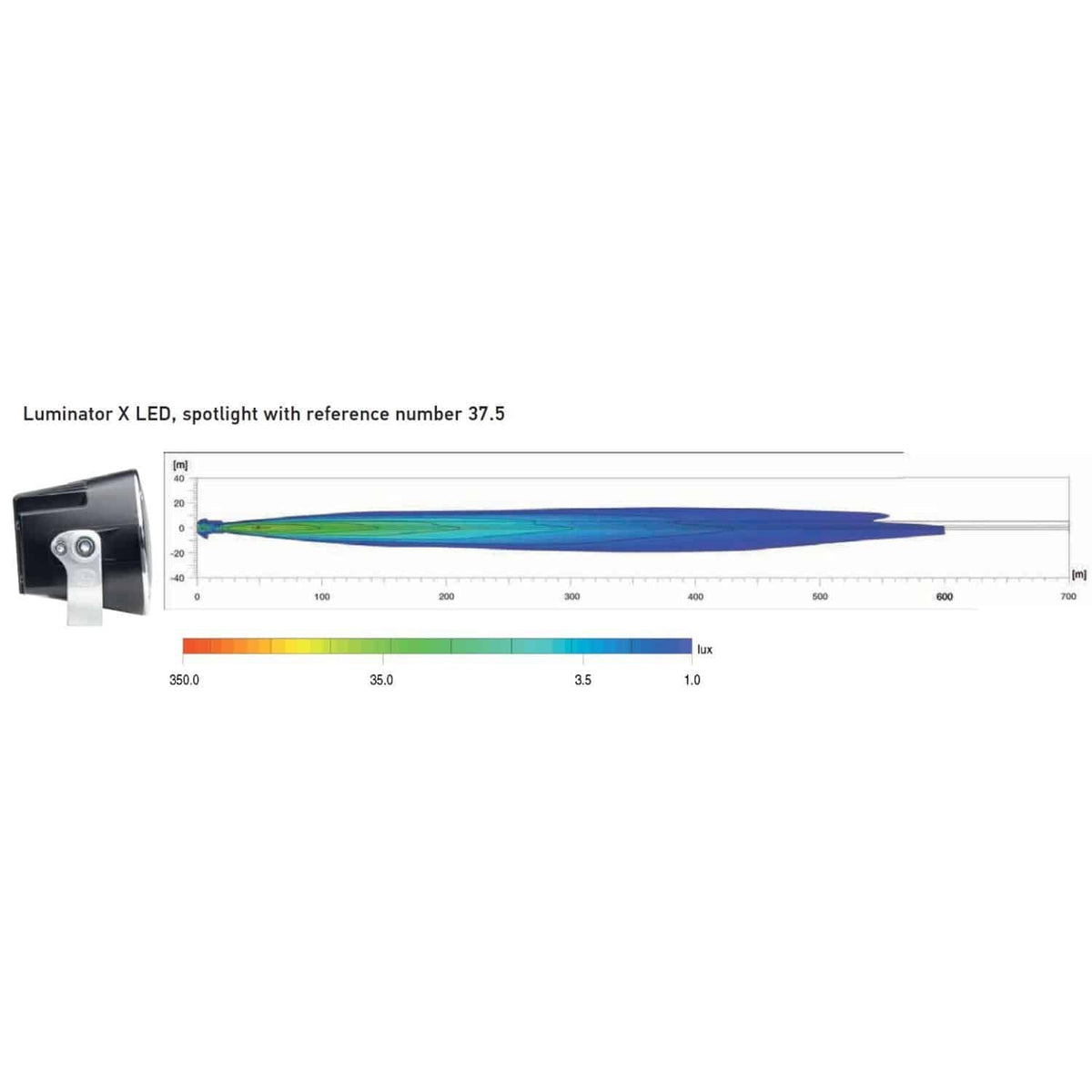

• ~1,000 Effective Lumens | 420m Beam: High-power LED with computer-calculated double-reflector technology — complete illumination of the roadway at 420m at 1 Lux. ECE Reference 37.5.
• Instant High-Beam Response: High-beam flasher emits light instantly with no delay — immediate, attention-grabbing response for safety and signalling.
• Passive Cooling — No Fan Required: Integrated electronics with cooling fins for efficient passive heat dissipation — silent, maintenance-free operation with no moving parts.
• Briefly Immersible: Rated for off-road fording — immersible up to 0.5m in clear water for up to 5 minutes. Built for river crossings and wet terrain.
• Rugged Metal Housing: Robust metal housing with sturdy holder — built to withstand the harshest off-road conditions. No bulb replacement ever required.
• Multi-Voltage (12V/24V): 40W at both 12V and 24V — compatible with passenger vehicles and heavy commercial trucks.
• Flexible Mounting: May be mounted upright or hanging — includes 3,000mm two-pole cable with open ends for easy installation.
• ECE Approved: ECE Reference 37.5, ECE approval E4 0417 — road-legal auxiliary driving light.

Specifications:

• Brand: Hella
• Model: Luminator X LED
• SKU: A2201
• Effective Lumens: ~1,000 lm

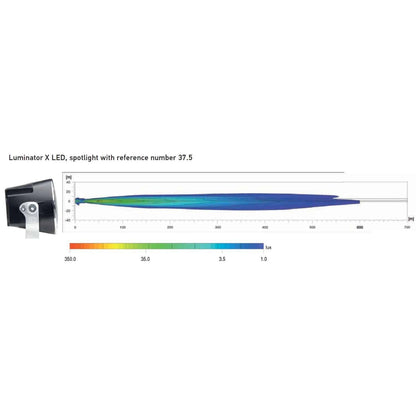

• Beam Distance: 420m at 1 Lux
• ECE Reference: 37.5
• ECE Approval: E4 0417
• Wattage: 40W (12V & 24V)
• Operating Voltage: 12V / 24V (Multi-voltage)
• Technology: High-power LED, double-reflector
• Cooling: Passive fins (no fan)
• Housing: Metal
• Immersion: Up to 0.5m / 5 minutes
• Cable: 3,000mm two-pole with open ends
• Mounting: Upright / pendant

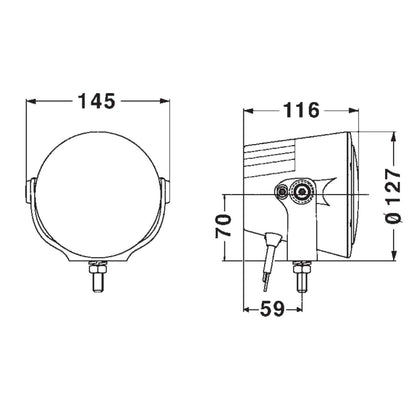

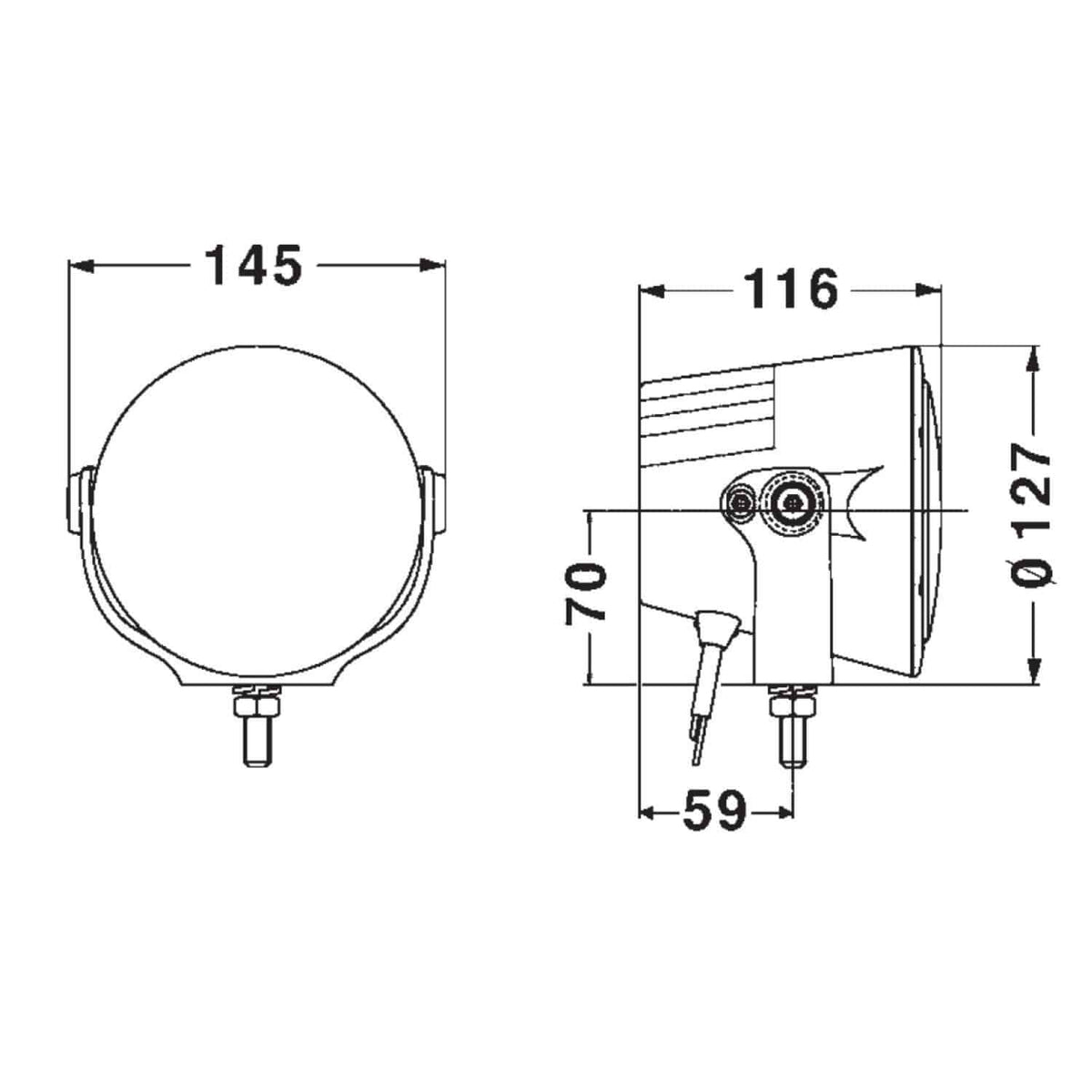

• Dimensions: 141mm (H) x 127mm (W) x 103mm (D) | approx. 5" diameter
• Weight: 1.17kg (single lamp)
• Sold As: Single lamp

What's in the Box:

• 1x Hella Luminator X LED spotlight with 3,000mm cable
• Mounted holder
• Assembly instructions

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
