Quick Pitch Weathershade 20-Second 270° Awning – Legless Freestanding 4x4 Canopy (15m²)

15m² of Shade. Zero Poles. Under 20 Seconds. Every Time.

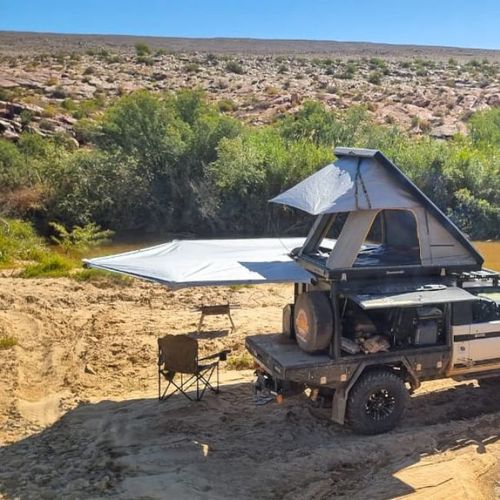

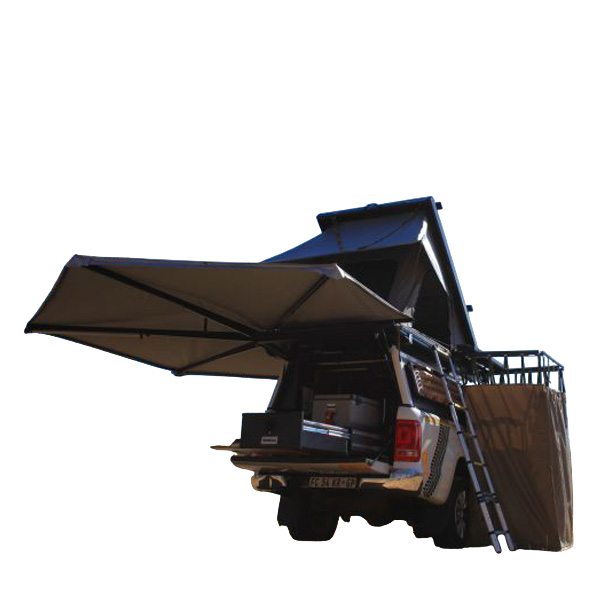

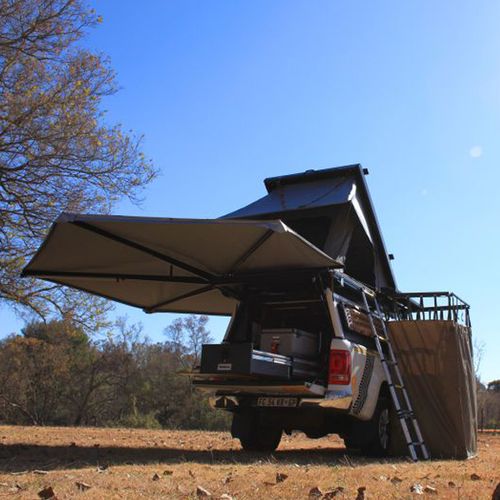

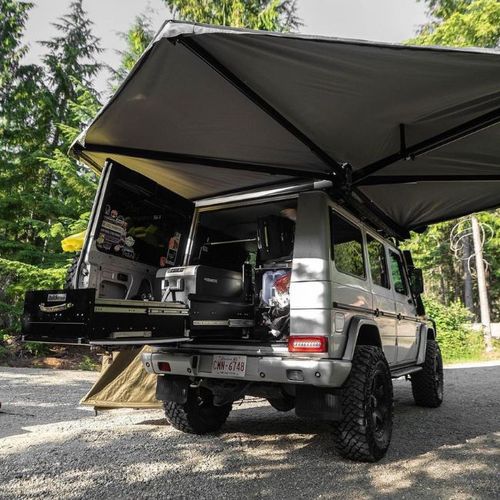

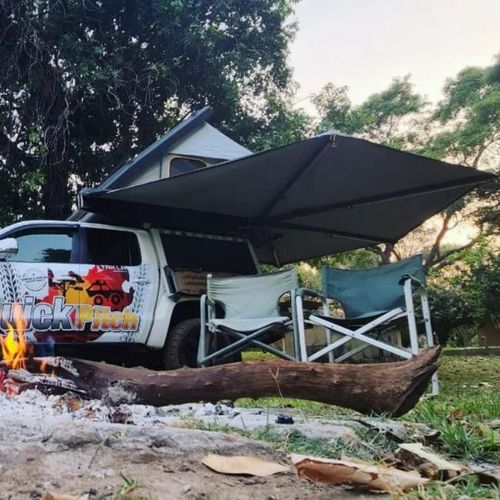

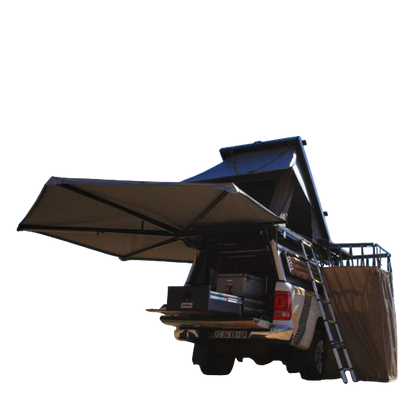

Stop fumbling with loose support poles, tangling guy ropes, or cheap twist-lock legs every time you pull over for a trail break. The Quick Pitch Weathershade 20-Second 270° Awning is the benchmark freestanding canopy in the global overlanding market — deploying a massive 15m² shade footprint that wraps completely around the side and rear of your vehicle in under 20 seconds, with your kitchen area completely clear of vertical poles.

This is the standard 2.5m model — the perfect fit for double-cab bakkie loadboxes, full-length roof racks, and canopy setups.

⚠️ Important: Select your deployment side — Left-Hand Side (QPSA-AW270-LHS) or Right-Hand Side (QPSA-AW270-RHS) — based on your vehicle orientation and preferred campsite setup.

🌳 Key Features

• 20-Second Deploy & Pack: The benchmark freestanding awning in the global overlanding market — fully deployed or packed away in under 20 seconds with zero tools
• 15m² Freestanding Shade: 2.4m arm travel radius sweeps a full 270° to wrap completely around the side and rear of your vehicle for a massive, unobstructed shade footprint
• Legless Freestanding Design: Rigid structural foundation withstands severe crosswinds without failure-prone vertical support legs or ground guy ropes
• 6mm Structural Stainless Steel Hinges: Twin double-action hinges laser-cut and CNC-bent from 6mm structural stainless steel — the only awning in its class with this specification
• Gusseted Extruded Box Arms: Internal structural webbing gussets on all arms resist twisting and upward wind lift under unexpected gusts
• Heat-Reflective Canvas: High-performance water-resistant overlanding canvas with a silver inner lining for full thermal UV deflection — keeps the shade zone noticeably cooler on hot sunny days

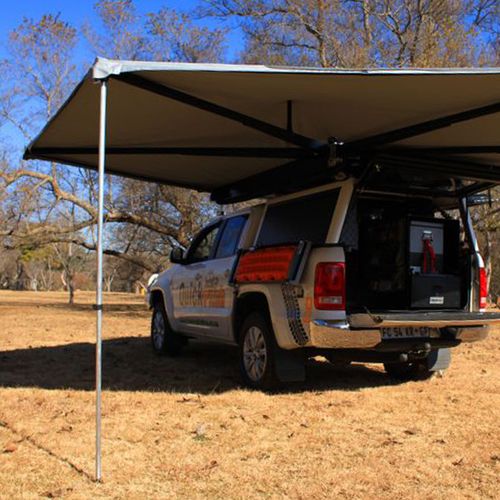

• Harsh Weather Kit Included: 1 x fold-out anchor pole with 4 tie-down straps + 3 Velcro tightening straps to lock the awning down in extreme wind conditions
• 270° Side Wall Kit Compatible: Pairs directly with the Quick Pitch 270° Awning Side Wall Kit (5-panel zip-in ripstop enclosure) to convert your canopy into a fully enclosed, weatherproof camp room

📐 Technical Specifications

• SKU: QPSA-AW270-LHS (Left-Hand Side) | QPSA-AW270-RHS (Right-Hand Side)
• Packed Dimensions: 2,500 mm (L) x 155 mm (W) x 150 mm (H)
• Arm Length: 2.4 m per arm
• Shade Coverage: 15.0 m²
• Weight: 27.0 kg
• Hinges: 6mm structural stainless steel, laser-cut and CNC-bent (twin double-action design)
• Arms: Extruded aluminium with internal gusset reinforcement
• Canvas: Water-resistant, UV-deflecting overlanding canvas with silver heat-reflective lining
• Included: 1 x anchor pole, 4 x tie-down straps, 3 x Velcro tightening straps, dust-proof canvas travel bag
• Side Wall Option: Compatible with Quick Pitch 270° Awning Side Wall Kit (5 zip-in ripstop panels)

💡 Complete Your Shade Setup

Pair this awning with the correct mounting bracket for your rack system — Quick Pitch Awning to Front Runner Bracket Set, Awning to Rhino-Rack Pioneer Bracket Set, or Awning to Load Bar Bracket Set. Add the Quick Pitch 270° Awning Side Wall Kit to convert your canopy into a fully enclosed, weatherproof camp room. Mount the Quick Pitch Quick-en-Suite Box Unit on the opposite side of the vehicle for a complete basecamp setup.

✅ Why Quick Pitch?

Backed by the Quick Pitch South Africa Lifetime Mechanical Guarantee on the structural 6mm stainless steel hinge mechanism. The original 20-second freestanding awning — trusted by overlanders across the globe for its engineering precision and zero-maintenance deployment.

🔩 Fitment & Installation

Professional fitment available at Advanced 4x4 or any of our authorised fitment centres nationwide. Our team confirms the correct bracket set for your specific rack system and vehicle orientation.

⏳ Lead Time

Please allow 14 business days for production/sourcing if stock is not immediately available.
