Your Awning. Your Load Bars. One Rock-Solid Connection.

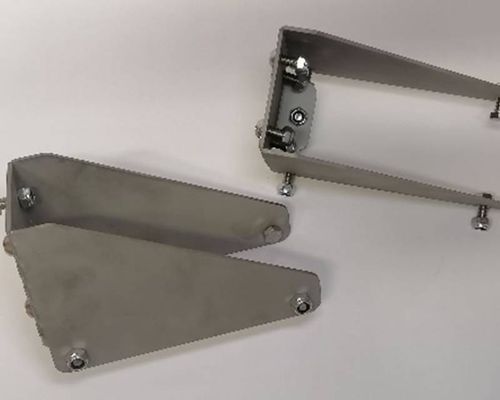

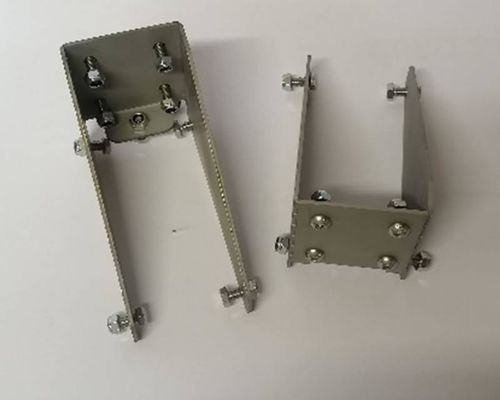

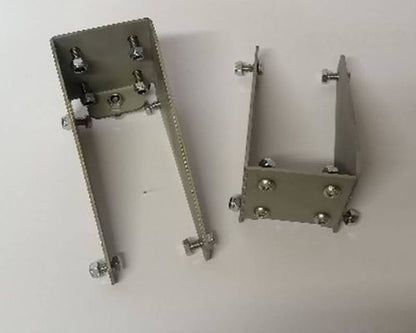

Freestanding poleless awnings create massive rotational leverage on your roof setup — and standard brackets simply aren't built for it. The Quick Pitch Awning to Load Bar Bracket Set is engineered from 3mm structural stainless steel specifically to handle the downward and twisting forces generated by 180° and 270° freestanding awnings, keeping your shade canopy locked in place from the first corrugated track to the last.
Designed around the universal M8 mounting slots found on Quick Pitch Load Bars and other major aluminium load bar systems, this is a true bolt-on installation — no drilling, no rack modifications, no compromises.
Important: This bracket is configured for square/rectangular load bars with top T-slots or M8 channels. It will not clamp onto aerodynamic factory crossbars without a channel profile.
Key Features
-
Universal Load Bar Interface: Designed with universal M8 mounting holes that secure seamlessly into the top and side slots of Quick Pitch Load Bars and other major aluminium load bar systems
-
3mm Structural Stainless Steel: Laser-cut and CNC-bent to handle the torsional load and wind leverage of poleless freestanding awnings
-
Zero Drilling Required: Bolt-on installation into existing M8 channels keeps your rack configuration clean, adjustable, and warranty-intact
-
Low-Profile Design: Centers awning weight close to the bars, reducing crosswind resistance and maintaining vehicle clearance
-
Matte Black Textured Powder Coat: Durable, scratch and rust-resistant finish matched to Quick Pitch Load Bar aesthetics
-
Complete Hardware Kit: Supplied as a pair with high-tensile stainless steel channel nuts, M8 bolts, washers, and locking nuts — ready to install out of the box
-
Universal Awning Compatibility: Fits the Quick Pitch Weathershade 270°, 180°, and Weathershade Maxx awning variations
Technical Specifications
-
SKU: QPSA-BRK-AW-LB
-
Dimensions: 240 mm (L) x 90 mm (W) x 115 mm (H) per bracket
-
Weight: ~1.4 kg per pair
-
Material: 3mm structural stainless steel, laser-cut and CNC-bent
-
Finish: Matte black textured powder coat
-
Load Bar Compatibility: Quick Pitch Load Bars and major aluminium load bars with M8 top/side slots
-
Awning Compatibility: Quick Pitch Weathershade 270°, 180° & Maxx
-
Hardware Included: Stainless steel channel nuts, M8 bolts, washers, locking nuts
-
Package Contents: 2 x brackets + full hardware kit
Perfect Pairing
Build a complete mounting system in one go — combine this bracket set with a pair of Quick Pitch Load Bars and the Quick Pitch Adjustable Load Bar Mount Brackets for a fully levelled, awning-ready roof setup on any vehicle.
Fitment & Installation
Professional fitment available at Advanced 4x4 or one of our approved fitment centres in the Western Cape, Gauteng and the Garden Route. Our team ensures correct channel alignment, torque settings, and load distribution for your specific load bar configuration.
Lead Time
Please allow 14 business days for production/sourcing if stock is not immediately available.
