Quick Pitch Trax-Tab – Drop-Down Camp Table & Rapid Recovery Board Mount

Recovery Board Holder by Day. Camp Prep Table by Night.

Roof space is precious. Side panel real estate is even more so. The Quick Pitch Trax-Tab is the only overlanding accessory that earns its mounting position twice — as a heavy-duty, anti-rattle recovery board holder on the trail, and as an instant fold-down camp preparation table at the end of the day.

No more fumbling with plastic pins, rusted bolts, or jammed ratchet straps when you're axle-deep in soft sand. Simply flip the stainless steel latch and your MaxTrax are out in under 3 seconds. Then at camp, drop the tray flat on its marine-grade cable supports and you have a solid prep surface ready for cooking, tools, or gear sorting.

💡 Trax-Tab vs Trax-Clamp: The Trax-Tab includes the fold-down camp table function. The Trax-Clamp is the fixed-layout mount only. Choose based on your build priorities.

🔧 Key Features

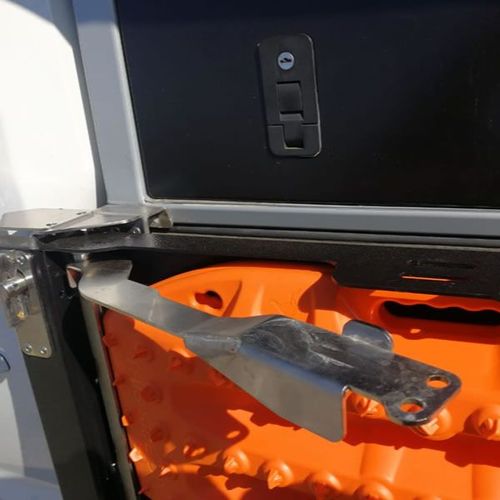

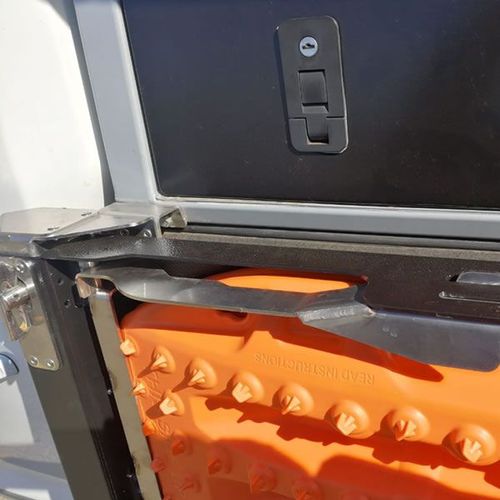

• 3-Second Rapid Release: Tool-free stainless steel latch mechanism — flip open and slide recovery boards out in under 3 seconds in deep mud or sand recovery situations

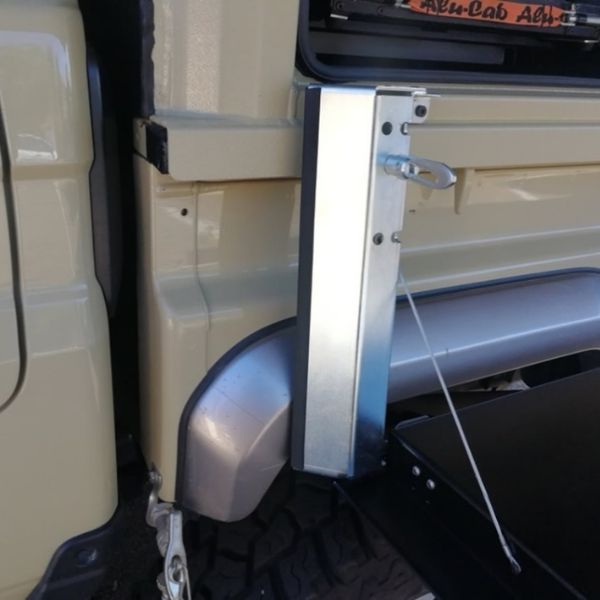

• Instant Drop-Down Table: High-tensile stainless steel marine cables and heavy-duty adjustable webbing straps drop the tray face flat for camp cooking, meal prep, or tool staging
• Anti-Rattle Pressure Locks: Dual built-in anti-rattle bolt pressure locks squeeze boards tight and completely eliminate highway trail chatter over corrugated roads
• Aerodynamic Tapered Edge: Front taper design minimises oncoming air resistance and highway wind noise when boards are mounted

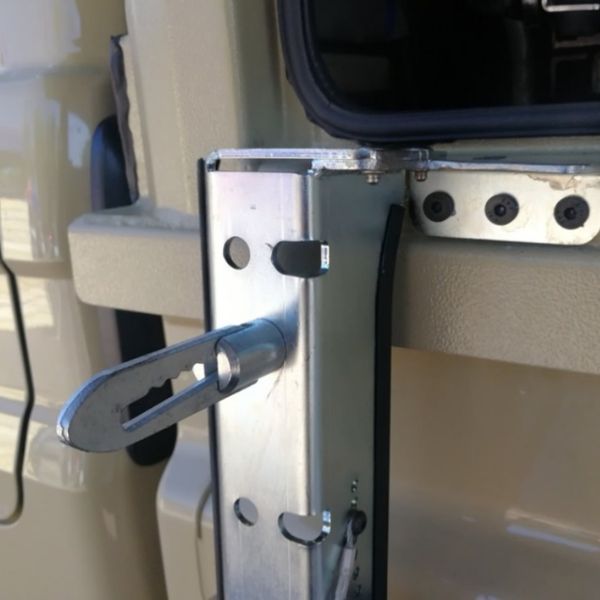

• Anti-Theft Padlock Loop: Pre-drilled structural padlock anchor point locks the entire clamp arm down — secures expensive recovery gear on the trail and in urban areas
• On-Chassis Cleaning: Open backplate layout drains mud and debris naturally — pressure-wash or hose down dirty MaxTrax directly in the clamp without releasing them

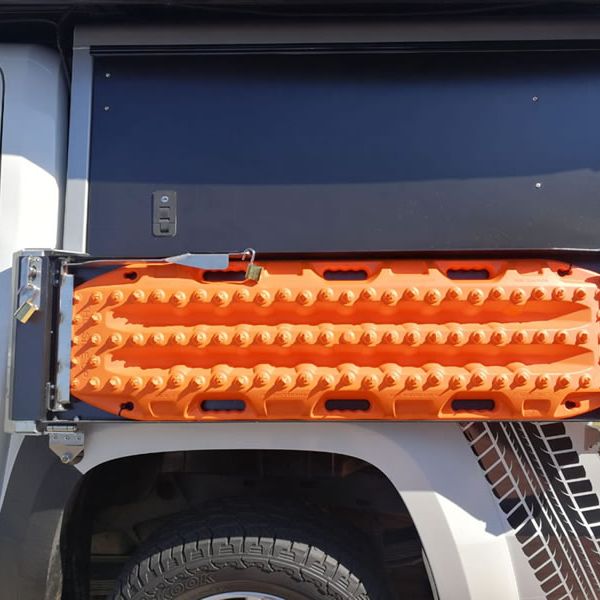

• Adjustable Capacity: Holds 2 or 4 traction boards (1 or 2 full MaxTrax sets) via adjustable pressure-lock arm

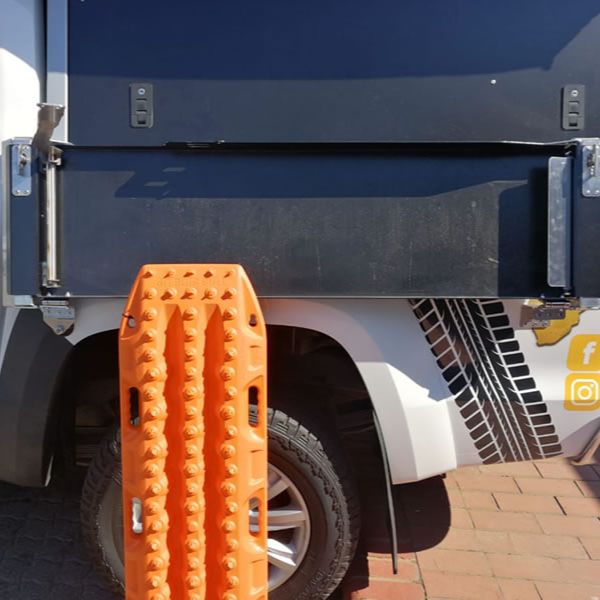

• Universal Mounting: Hard-bolts with backing plates through canopy frames, bakkie tub sides, vehicle body panels (e.g., LC78 Troopy), camper trailers, or roof trays

📐 Technical Specifications

• SKU: QPSA-TB001
• Base Tray Material: 3mm architectural-grade aluminium, oxidized and powder-coated
• Bracket & Arm Material: Structural stainless steel
• Table Support: High-tensile stainless steel marine cables + heavy-duty adjustable webbing straps
• Capacity: 2 or 4 recovery boards (adjustable)
• Board Compatibility: MaxTrax and standard recovery board footprint profiles
• Anti-Rattle: Dual built-in pressure-lock bolt latches
• Security: Integrated padlock anchor loop
• Mounting: M8 bolts with backing plates — canopy frames, bakkie tubs, body panels, trailers, roof trays

⚠️ Fitment Notice

While the Trax-Tab can be mounted to almost any flat surface, bracing internally through a canopy framework or bakkie bin lining is strongly recommended to protect outer sheet metal panels from excessive trail leverage and vibration fatigue.

💡 Perfect Pairing

Link this as a premium upgrade on your Quick Pitch Drawer System or Canopy setup for a complete overlanding side-panel solution. Also pairs with the Quick Pitch Spare Wheel Cargo Mount for a rear recovery hub.

✅ Why Quick Pitch?

Backed by the Quick Pitch South Africa 100% Satisfaction Guarantee and a lifetime structural warranty against cracking or hinge failure under extreme off-road vibrations. The aluminium tray and stainless hardware are built to outlast the trails.

🔩 Fitment & Installation

Professional fitment available at Advanced 4x4 or any of our authorised fitment centres nationwide. Our team ensures correct backing plate placement, M8 torque settings, and cable tension for a rattle-free, trail-ready installation.

⏳ Lead Time

Please allow 14 business days for production/sourcing if stock is not immediately available.
