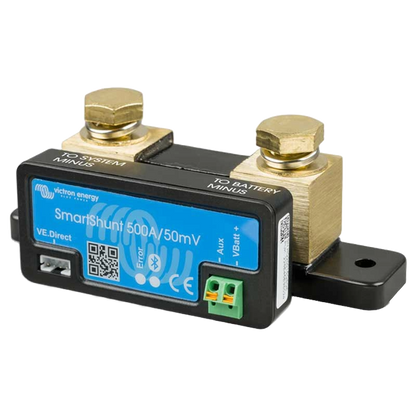

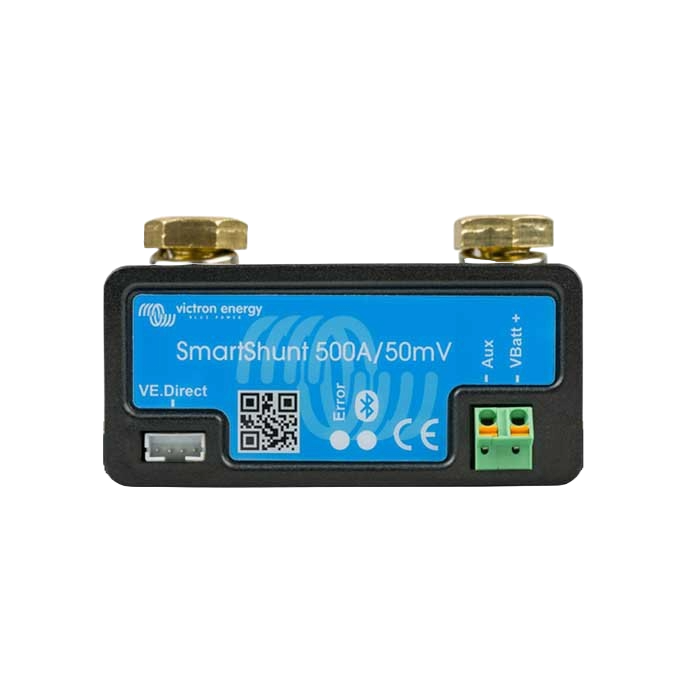

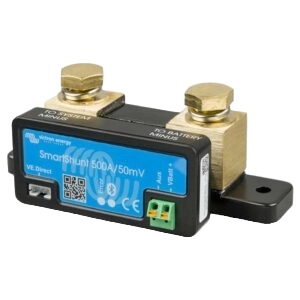

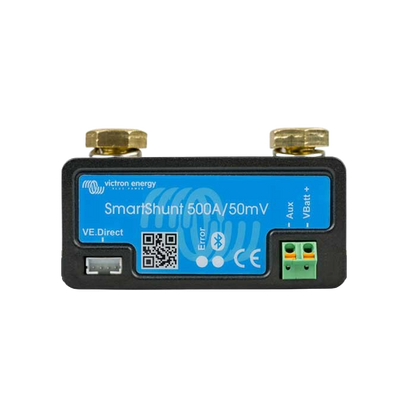

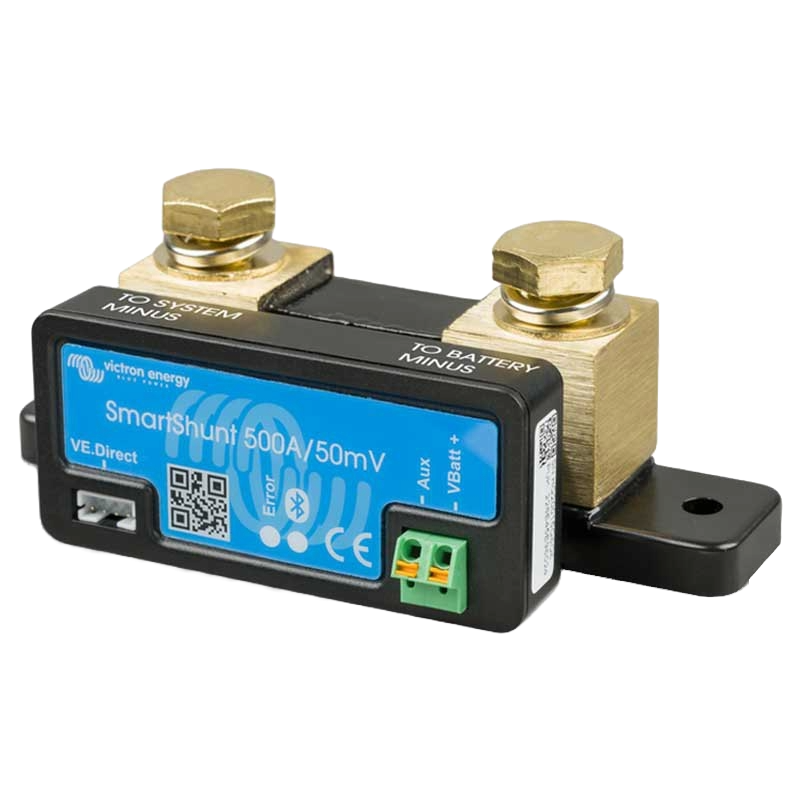

Victron SmartShunt 500A/50mV Battery Monitor

Victron SmartShunt 500A/50mV — Bluetooth Battery Monitor

The Victron SmartShunt 500A/50mV is an all-in-one battery monitor with built-in Bluetooth — your phone acts as the display. Connect via the VictronConnect app to monitor all key battery parameters in real time including state of charge, time to go, voltage, current, and historical data. A compact, low-clutter alternative to the BMV battery monitor — ideal for off-grid, overlanding, marine, and backup power systems.

Key Features:

• Built-in Bluetooth: Connect wirelessly to the VictronConnect app on your smartphone or tablet — monitor state of charge, time to go, voltage, current, power, and full history without a separate display.
• 500A Continuous Rating: Handles high-current battery systems up to 500A — suitable for large battery banks and high-draw applications.
• Second Battery / Midpoint Monitoring: Auxiliary input can monitor a second battery voltage, battery midpoint voltage, or connect a temperature sensor — three functions in one port.
• VE.Direct Port: Connect to a GX device (Cerbo GX, Venus GX) for integration into a full Victron system with VRM portal monitoring.
• Wide Voltage Range: Supports 6.5–70V DC — compatible with 12V, 24V, and 48V battery systems.
• Supports 1–9999Ah Battery Capacity: Configurable for any battery bank size from small auxiliary batteries to large off-grid systems.
• Temperature Monitoring: Optional temperature sensor input for battery temperature compensation and monitoring (-20 to +50°C).
• Easy Installation: Compact form factor with minimal wiring — a cleaner alternative to traditional battery monitors with separate shunts and displays.

Specifications:

• Brand: Victron Energy
• Model: SmartShunt 500A/50mV
• Rated Current: 500A
• Supply Voltage: 6.5–70V DC
• Current Draw: <1mA
• Auxiliary Input Voltage: 6.5–70V DC
• Battery Capacity Range: 1–9999Ah
• Temperature Range: -20 to +50°C
• Bluetooth: Built-in (VictronConnect app)
• Communication: VE.Direct
• Dimensions: 46mm (H) x 120mm (W) x 54mm (D)
• Weight: 0.374kg

What's in the Box:

• 1x Victron SmartShunt 500A/50mV
• 2x Cables with 1A fuse (for + connection, starter battery, or midpoint connection)

⏳ Lead Time: Please allow 14 business days for sourcing if stock is not immediately available.
